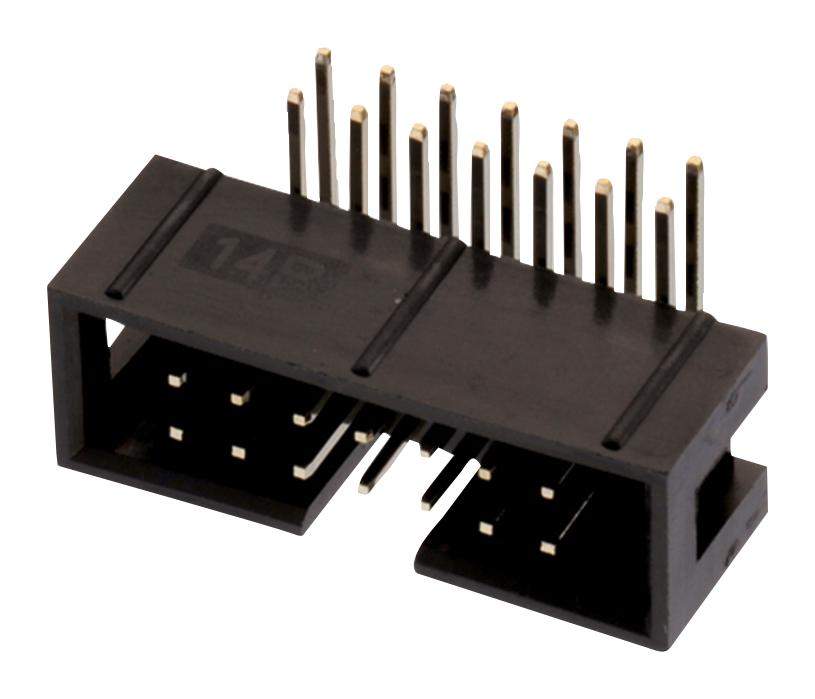

WURTH ELEKTRONIK 61200621721 Angled Box Header

The Würth Elektronik WR-BHD 61200621721 is an angled box header designed for general electronic equipment. It is suitable for applications requiring a reliable and space-saving connection. The header is RoHS compliant and features a 2.54mm pitch, ensuring compatibility with standard spacing. It is not intended for use in safety-critical applications without proper evaluation and agreement.

61200621721 WURTH ELEKTRONIK Angled Box Header | myMectronic
View 61200621721Datasheet [pdf]
Authorized Distributors
Source:Newark
Part No:61200621721
Stock:144
Inv Date:06-12-2026
Price: Unit price: $1.27
Buy/RFQ:
Source:DigiKey
Part No:61200621721
Stock:2028
Inv Date:06-12-2026
Price: Unit price: $1.1
Buy/RFQ:
Source:Mouser Electronics
Part No:61200621721
Stock:267
Inv Date:06-12-2026
Price: Unit price: $1.16
Buy/RFQ:
Source:RS Americas, Inc
Part No:61200621721
Stock:0
Inv Date:06-12-2026
Price: Unit price: $0.62
Buy/RFQ:

WURTH ELEKTRONIK 61200621721 Angled Box Header Specifications:

  • Dimensions_L: ±0.20 mm
  • Dimensions_Pl: ±0.10 mm
  • Dimensions_q: 0.64 ±0.01 mm
  • Dimensions_2_54: 2.54 ±0.05 mm
  • Dimensions_4_50: 4.50 ±0.15 mm
  • Dimensions_3_00: 3.00 ±0.15 mm
  • Dimensions_8_85: 8.85 ±0.15 mm
  • Dimensions_1_84: 1.84 ±0.15 mm
  • Pitch_P: 2.54 mm
  • Rated_Current_IR: 3 A
  • Working_Voltage: 250 V (AC)
  • Withstanding_Voltage: 500 V (AC)
  • Contact_Resistance_R: 20 mΩ
  • Insulation_Resistance_RISO: 1000 MΩ
  • Insulator_Material: PBT
  • Insulator_Flammability_Rating: UL94 V-0
  • Contact_Material: Copper Alloy
  • Contact_Plating: Gold
  • Operating_Temperature: -40 up to +105 °C
  • RoHS_Approval: Compliant [ 2011/65/EU&2015/863 ]
  • REACh_Approval: Conform or declared [ (EC)1907/2006 ]
  • Halogen_Free: Conform [ IEC 61249-2-21 ]
  • UL_Approval: E323964
