WURTH ELEKTRONIK 65503503630501 RF Connector

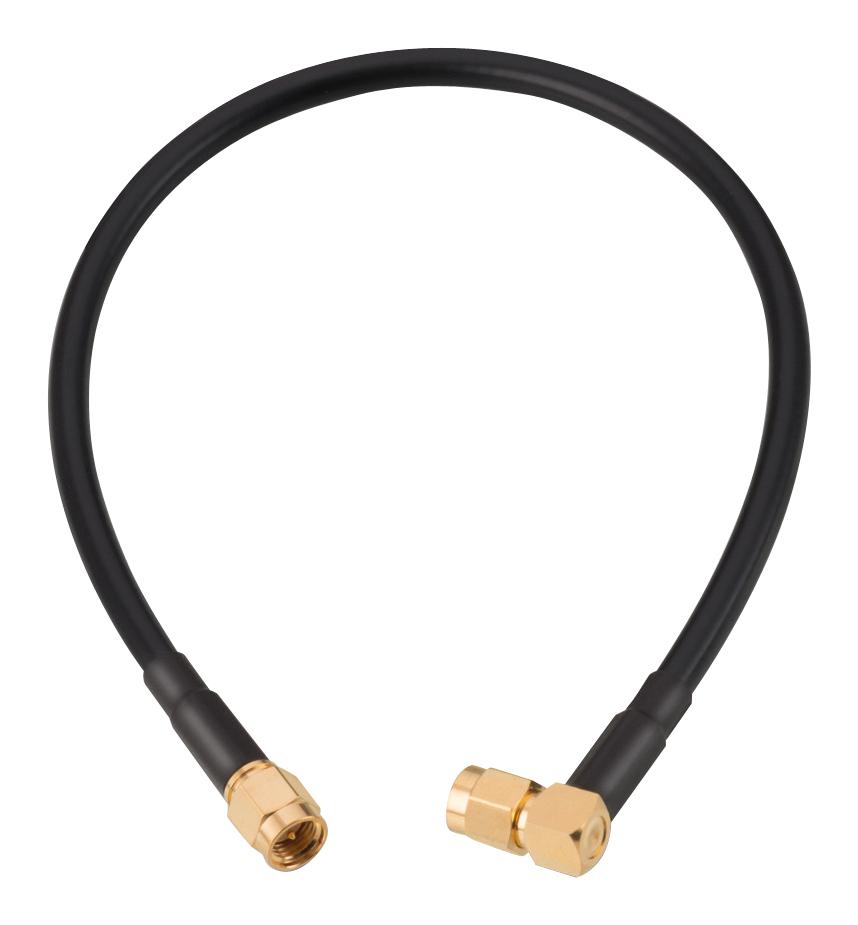

This SMA connector set features a straight plug and right angle plug on flexible RG58 cable, with brass components, gold plating, and silicone gasket for reliable RF connections. Certified for durability and RoHS compliant, it operates within -20°C to +80°C temperature range. Designed for high-performance applications including RF systems, test equipment, and antenna connections, ensuring low attenuation and excellent impedance matching across DC to 1 GHz frequency range. Precise dimensions and robust materials confirm long-lasting, high-quality performance in demanding environments.
WURTH ELEKTRONIK 65503503630501 RF Connector Specifications:
- Connector Type 1: SMA straight plug
- Connector Type 2: SMA right angle plug
- Cable Type: Flexible RG58
- Body Material: Brass
- Body Plating: Gold, min. 0.076 μm over Nickel
- Ferrule Material: Brass
- Ferrule Plating: Gold, min. 0.076 μm over Nickel
- Center Contact Material: Brass
- Center Contact Plating: Gold, min. 0.76 μm over Nickel
- Gasket Material: Silicone
- Gasket Color: Red
- Insulator Material: PTFE
- Insulator Color: White
- Heat Shrink Tube Material: PE
- Heat Shrink Tube Color: Black
- Coupling Nut Material: Brass
- Coupling Nut Plating: Gold, min. 0.076 μm over Nickel
- Impedance: 50 Ω
- VSWR: Max. 1.3 at DC to 1 GHz
- Insertion Loss: Max. 0.03 dB at DC to 1 GHz
- Operating Temperature: -20°C to +80°C
- Maximum Power: 14 W
- Mechanical Durability: 500 mating cycles
- Packaging: Bag
Buy the Buy Wirth Elektronik SMA Connector Part Number 65503503630501 Online
Purchase the Wirth Elektronik RF connector set featuring SMA straight and right angle plugs on flexible RG58 cable for high-frequency RF applications. Crafted from durable brass with gold plating, this connector ensures excellent impedance matching, low insertion loss, and robust mechanical performance from -20°C to +80°C. Perfect for RF systems, antennas, and test equipment, it offers easy mating, high durability with up to 500 cycles, and RoHS compliance. Seamlessly order online to upgrade your RF connectivity with precision-engineered, reliable components designed for demanding environments.
Get Wirth Elektronik SMA connector Part Number 65503503630501 today—engineered for reliable RF connections and long-lasting durability.
