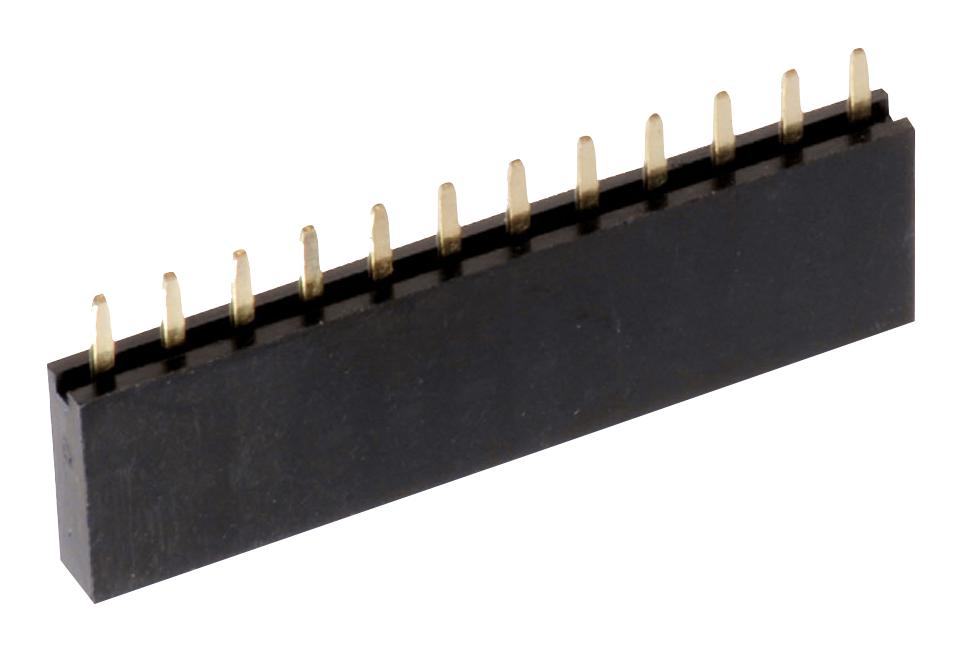

WURTH ELEKTRONIK 61300411821 Socket Header
The WR-PHD Socket Header is a high-quality, gold-plated copper alloy connector designed for reliable electrical connections in electronic devices. It features a pitch of 2.54 mm, a rated current of 3 A, and a working voltage of 250 V AC. With dimensions of approximately 10.66 mm in length and 7.62 mm pin-to-pin spacing, it offers durability for up to 500 mating cycles. Certified compliant with RoHS and UL standards, this connector ensures high reliability and safety in various electronic applications.
WURTH ELEKTRONIK 61300411821 Socket Header Specifications:
- Pitch: 2.54 mm
- Pin to Pin (Middle): 7.62 mm
- Length: 10.66 mm
- Number of Pins: 4
- Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability: UL94 V-0
- Insulator Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Durability: 500 mating cycles
- Compliance: RoHS, UL (E323964), REACH
Buy the Wurth Elektronik Series WR-PHD Socket Header: 61300411821
Purchase the Wurth Elektronik WR-PHD Socket Header online today and ensure reliable, high-quality connections in your electronic projects. Designed with gold-plated copper contacts, this connector offers excellent durability for up to 500 mating cycles. It features a 2.54 mm pitch, rated for 3 A and 250 V, and complies with RoHS and UL standards for safety and environmentally friendly operation. Whether for prototyping or final assembly, this socket header guarantees precision, safety, and long-term performance in your electronic devices.
Get Wurth Elektronik WR-PHD Socket Header today—built for precise electrical connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300411821?
You can click on the BUY or RFQ button to purchase 61300411821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300411821?
You can download the 61300411821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300411821?
WURTH ELEKTRONIK
