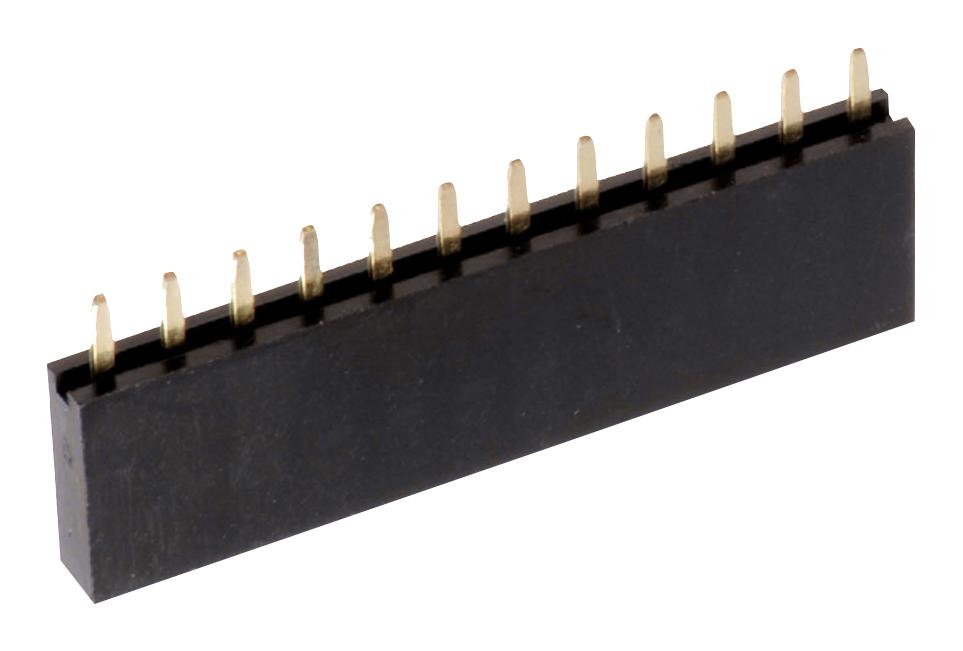

WURTH ELEKTRONIK 61301211821 Socket Header
Wurth Elektronik's WR-PHD Socket Header is a high-quality, durable connector designed for electronic applications requiring reliable pin-to-pin connections. Featuring a pitch of 2.54 mm, it supports up to 12 pins with gold-plated contacts for excellent conductivity and corrosion resistance. The insulator is made of UL94 V-0-rated PBT, ensuring safety in various operating temperatures from -40°C to +105°C. Suitable for wave soldering processes, it provides 500 mating cycles, making it ideal for modular electronic systems and circuit board connections requiring stability and longevity.
WURTH ELEKTRONIK 61301211821 Socket Header Specifications:
- Pitch: 2.54 mm
- Number of Pins: 12
- Pin to Pin Spacing: 27.94 mm
- Length: 30.98 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature Range: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V
- Withstanding Voltage: 500 V (1 min)
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Durability: 500 Mating cycles
- Soldering Profile: Wave soldering compatible, per EN61760-1:2006
Buy the Wurth Elektronik Series WR-PHD Socket Header: 61301211821
Discover the Wurth Elektronik WR-PHD Socket Header, a robust and high-precision connector supporting 12 pins with gold-plated contacts. Its UL94 V-0 insulator ensures safety and durability in various temperature ranges from -40°C to +105°C. Designed for wave soldering, it provides 500 mating cycles for repeated use in modular electronic systems. Its compact size and reliable connection make it perfect for circuit board assembly, automation, and industrial equipment, ensuring high performance and longevity in demanding environments.
Get Wurth Elektronik WR-PHD Socket Header 61301211821 today—built for precision, reliability, and long-lasting electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61301211821?
You can click on the BUY or RFQ button to purchase 61301211821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61301211821?
You can download the 61301211821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61301211821?
WURTH ELEKTRONIK
