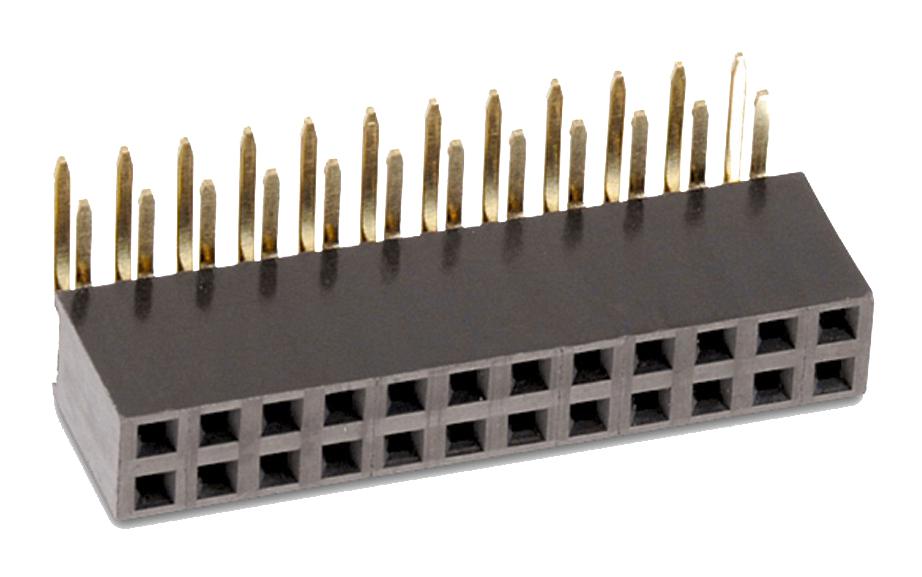

WURTH ELEKTRONIK 613022243121 Dual Socket
The WR-PHD Angled Dual Socket is a high-quality angled header designed for reliable electrical connections in electronic equipment. Crafted with a copper alloy contact material and gold plating, it offers durability for up to 25 mating cycles. The component features a 2.54 mm pitch, black PBT insulator rated UL94V-0, and operates within -40°C to +105°C. Compliant with RoHS and REACh standards, it supports a working voltage of 250 V and a rated current of 3 A, ensuring safety and efficiency in various electronic applications.
WURTH ELEKTRONIK 613022243121 Dual Socket Specifications:
- Pitch: 2.54 mm
- Number of Pins: 22
- Pin to Pin (Middle): 25.4 mm
- Length L: 28.44 mm
- Material: PBT Insulator
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Contact Type: Stamped
- Operating Temperature: -40°C to +105°C
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Durability: 25 mating cycles
- Certification: RoHS, REACh, UL
Buy the Wurth Series Dual Socket: 613022243121
Order the Wurth Series Dual Socket online now and benefit from high reliability, gold-plated contacts, UL94V-0 rated insulator, and excellent durability for electronic connection needs. Designed with a 2.54mm pitch, this component supports 3A current and 250V voltage, ensuring safety and efficiency. Perfect for various electronic devices, it features 22 pins, a compact size of 28.44mm in length, and proven quality standards like RoHS and UL certification. Secure your supply and enhance your projects with this dependable connector today.
Get Wurth 613022243121 dual socket today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 613022243121?
You can click on the BUY or RFQ button to purchase 613022243121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 613022243121?
You can download the 613022243121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 613022243121?
WURTH ELEKTRONIK
