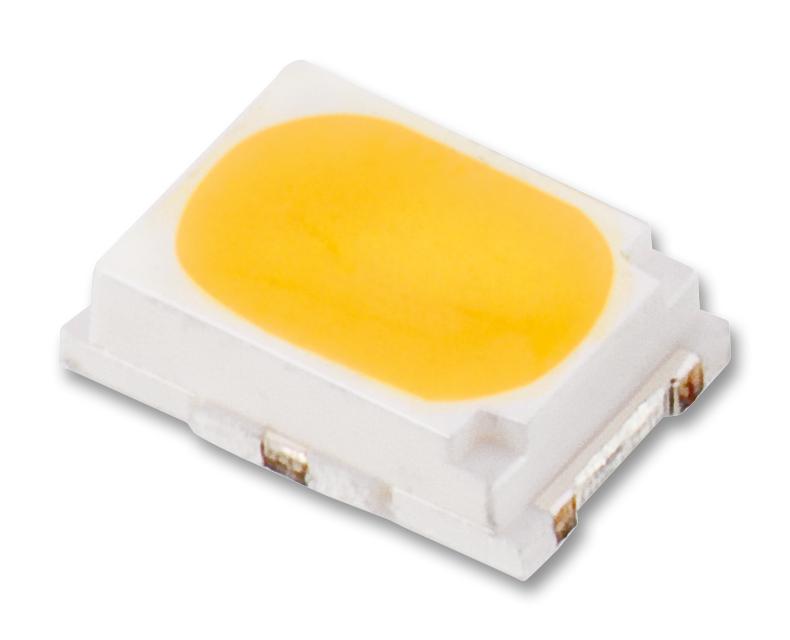

WURTH ELEKTRONIK 158302230 SMD White LED
The WL-SWTP SMD White Top View PLCC LED is designed for general electronic applications, offering reliable performance with a warm white emission. It features a top LED lens type, InGaN chip technology, and a viewing angle of 120°. Operating within -40°C to +85°C, it delivers a luminous flux of 18-20 lm at 60 mA and has a forward voltage of 32-35 V. Suitable for various lighting and indicator applications, it complies with RoHS & REACh standards, ensuring environmentally friendly manufacturing and usage.
WURTH ELEKTRONIK 158302230 SMD White LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Warm White
- Lens Type: Top LED
- Viewing Angle: 120°
- Chromaticity Coordinates X: 0.4298, Y: 0.3960 at 60 mA
- Luminous Flux: 18-20 lumens at 60 mA
- Forward Voltage: 32-35 V at 60 mA
- Correlated Color Temperature: 3000 K
- Reverse Voltage: 5 V
- Peak Forward Current: 100 mA
- Continuous Forward Current: 85 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Absolute Thermal Resistance (junction to solder): 38 KW
- Maximum Package Body Temp: 250°C
- Max. Ramp Up Rate: 3°C/s
- Max. Ramp Down Rate: 6°C/s
- Soldering: Reflow profile with controlled preheat and peak temperatures
Buy the Wurth Series WL-SWTP LED: 158302230
Purchase the Wurth Series WL-SWTP SMD White Top View PLCC LED online now to ensure high performance and reliability in your electronic or lighting applications. With a warm white emission, 120° viewing angle, and luminous flux of 18-20 lumens at 60 mA, this LED offers excellent brightness and efficiency. Its robust design supports operation within -40°C to +85°C and complies with RoHS & REACh standards for environmentally friendly usage. Secure your supply today and benefit from fast delivery, proven durability, and trusted quality for your electronic needs.
Order your Wurth Series WL-SWTP LED 158302230 today and enhance your electronic lighting projects with reliable, high-quality white LEDs.
