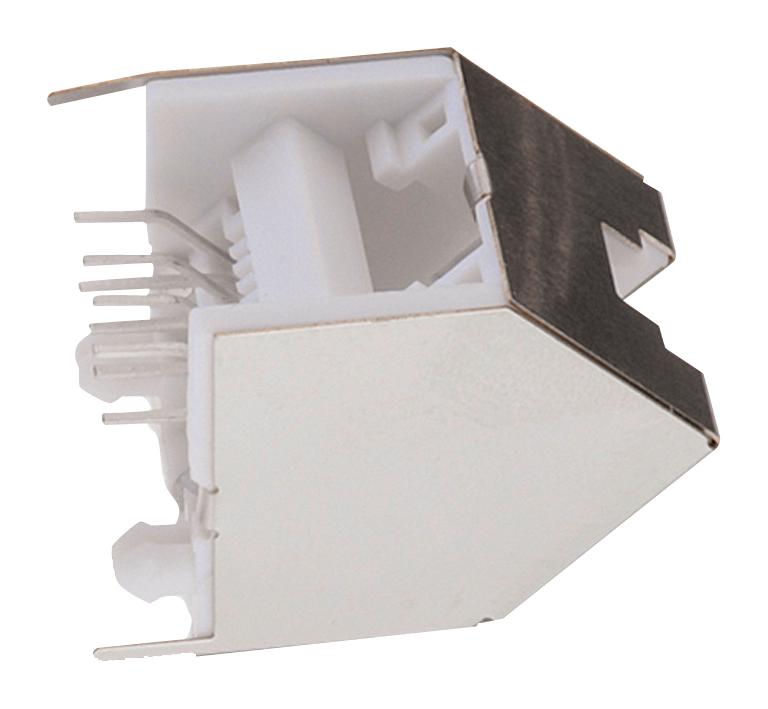

WURTH ELEKTRONIK 615008145121 Modular Jack
The WR-MJ Modular Jack & Reverse is a 45° entry, shielded, 8P8C connector designed for reliable networking and industrial applications. Crafted with a durable copper alloy contact material, it features gold plating for enhanced conductivity and long lifecycle. The module supports a rated current of 1.5A and operates within a temperature range of -40°C to +85°C. It complies with RoHS and REACH standards, ensuring environmentally conscious use. Its shielded design reduces electromagnetic interference, making it suitable for high-reliability electronic systems requiring secure connections and superior signal integrity.
WURTH ELEKTRONIK 615008145121 Modular Jack Specifications:
- Number of Pins: 8P8C
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5 A
- Working Voltage: 120 V AC
- Withstanding Voltage: 1000 V AC (1 min)
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 500 MΩ min.
- Material: Copper alloy contacts, PBT insulator, bronze shielding
- Plating: Selective gold on contacts, nickel on shielding
- Certification: RoHS compliant, REACH compliant
- Entry Angle: 45°
- Shielded design reduces EMI
- Mechanical durability: 500 mating cycles
Buy the Wurth Elektronik Series Modular Jack: 8P8C Shielded Connector 615008145121
Purchase the Wurth Elektronik Modular Jack 8P8C shielded connector online now for robust, secure network connections. Featuring gold-plated contacts, 45° entry, and a shielded design, it offers excellent EMI reduction and durability for industrial, networking, and high-reliability applications. Easy to install with a rated current of 1.5A and operating within -40°C to +85°C, this component ensures stable performance and long service life. Designed to meet environmental standards RoHS and REACH, it's the perfect choice for professional electronic systems that demand top-quality connectivity.
Order your Wurth Elektronik Series Modular Jack 615008145121 today and ensure your electronic systems have reliable, high-quality connections for demanding environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 615008145121?
You can click on the BUY or RFQ button to purchase 615008145121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 615008145121?
You can download the 615008145121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 615008145121?
WURTH ELEKTRONIK
