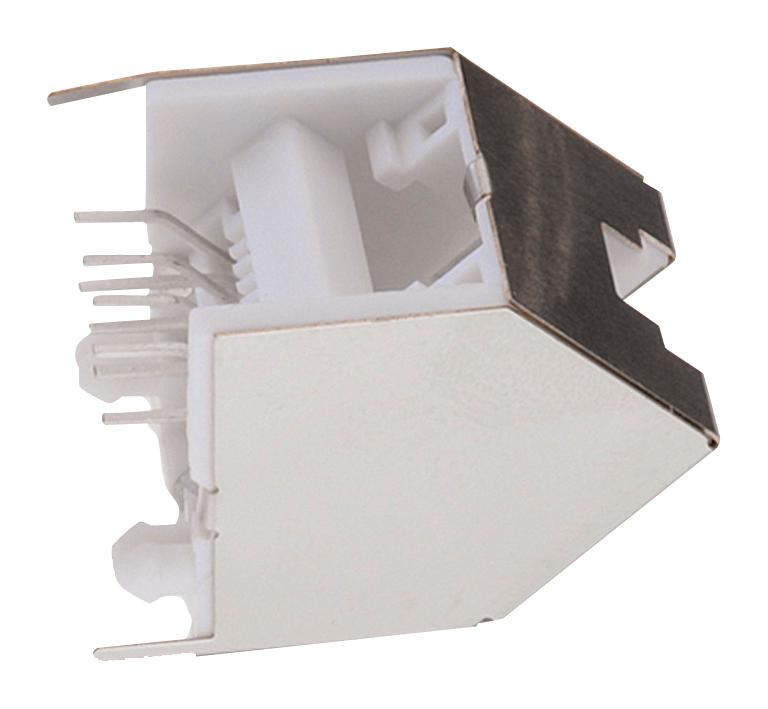

WURTH ELEKTRONIK 615008145221 Modular Jack
The WURTH ELEKTRONIK 45° Entry, Shielded, 8P8C Modular Jack is designed for reliable and secure connections in electronic systems. Featuring a metal post tail and shielded design, it ensures high performance and durability in various applications. Certified with RoHS and REACh approvals, the connector supports up to 1.5 A current and 120 V working voltage, with a maximum of 500 mating cycles. Its PBT insulator with gold-plated copper contacts provides excellent conductivity and resistance to harsh environments, making it suitable for industrial and commercial electronic equipment.
WURTH ELEKTRONIK 615008145221 Modular Jack Specifications:
- Pins: 8P8C (8 positions, 8 contacts)
- Entry Angle: 45°
- Shielding: Metal post tail, shielded design
- Contact Material: Copper alloy
- Contact Plating: Gold
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5 A
- Working Voltage: 120 V (AC)
- Withstanding Voltage: 1000 V (AC) 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 500 MΩ
- Durability: 500 mating cycles
- Certification: RoHS, REACh compatible
Buy the WURTH ELEKTRONIK 615008145221 – Reliable Shielded Modular Jack for Industrial Applications
Purchase the WURTH ELEKTRONIK 615008145221 shielded modular jack online today and enjoy high reliability, durable connections, and certified safety for your electronic equipment. Designed for industrial and commercial use, it provides excellent contact resistance and withstands harsh environments. With RoHS and REACh approvals, this connector ensures compliance with global environmental standards. Its easy installation and robust construction make it ideal for various electronic applications, offering long-term performance and security in your projects easily accessible with a few clicks.
Order your WURTH ELEKTRONIK series 615008145221 shielded modular jack today and ensure the dependable connection quality your electronic projects require.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 615008145221?
You can click on the BUY or RFQ button to purchase 615008145221 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 615008145221?
You can download the 615008145221 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 615008145221?
WURTH ELEKTRONIK
