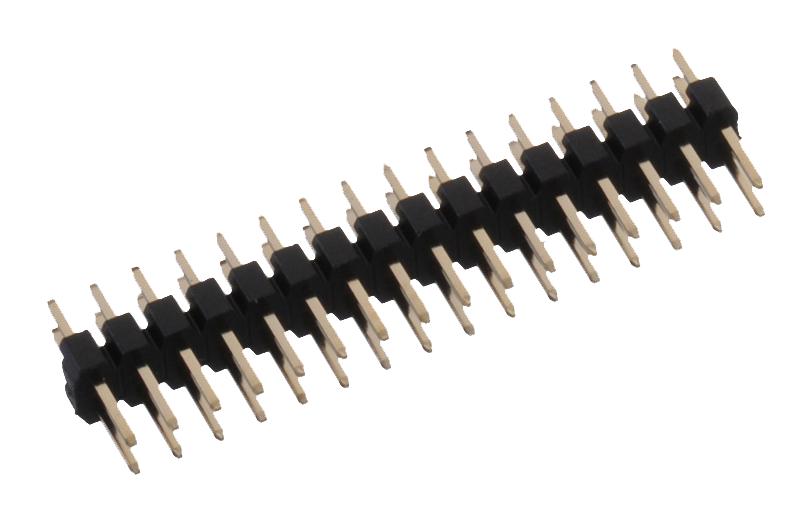

WURTH ELEKTRONIK 62001621121 THT Straight Dual Pin Header
The Würth Elektronik WR-PHD 62001621121 is a through-hole (THT) straight dual pin header designed for a wide range of electronic applications. This header provides a secure and reliable connection for various components and circuits. Constructed with a copper alloy and gold plating, it ensures excellent conductivity and corrosion resistance. The header is suitable for general electronic equipment and is not intended for use in critical safety applications without proper evaluation. It is RoHS compliant and REACH conform, meeting environmental standards. The header's robust design and reliable performance make it a valuable component for numerous industrial and commercial applications.
WURTH ELEKTRONIK 62001621121 THT Straight Dual Pin Header Specifications:
- Dimensions_L: 2
- Dimensions_Pl: 2
- Dimensions_End: 2
- Recommended_Hole_O: 0.8
- Pattern_l: 2
- Pin_to_Pin_Middle: 14
- Pitch_P: 2
- Durability: 25 Mating cycles
- Insulator_Material: PA9T
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Black
- Contact_Material: Copper Alloy
- Contact_Plating: Gold
- Contact_Type: Stamped
- Operating_Temperature: -40 to +105 °C
- Rated_Current_IR: 2 A
- Working_Voltage: 200 V (AC)
- Withstanding_Voltage: 500 V (AC)
- Contact_Resistance_R: 20 mΩ
- Insulation_Resistance_RISO: 1000 MΩ
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- UL_Approval: E323964
- Packaging_Unit_Bag: 500
- Packaging_Unit_Board: 15000
