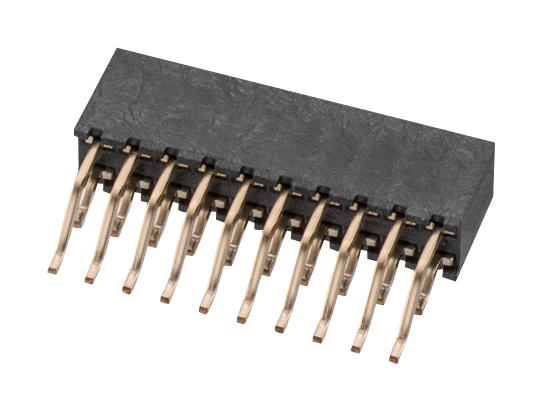

WURTH ELEKTRONIK 621110284621 SMT Dual Socket
The WR-PHD SMT Angled Dual Socket is a high-quality electronic connector designed for reliable PCB mounting in various applications. Featuring a pitch of 2 mm, it supports up to 500 mating cycles and has a durable copper alloy contact with gold plating for excellent conductivity and corrosion resistance. This angled header operates within a temperature range of -40°C to +105°C and is UL94V-0 flame rated. It provides a working voltage of 200 V, rated current of 2 A, and features a compact design suitable for space-efficient electronic assemblies. Compliant with international safety standards, it ensures stable electrical connections and long-term performance in demanding environments.
WURTH ELEKTRONIK 621110284621 SMT Dual Socket Specifications:
- Pitch: 2 mm
- Durability: 500 Mating cycles
- Material Contact: Copper Alloy
- Contact Plating: Gold
- Insulator Material: UL94V-0 rated plastic
- Operating Temperature: -40°C to +105°C
- Working Voltage: 200 V
- Rated Current: 2 A
- Pin to Pin (Middle): 8 mm
- Package Thickness: <1.6 mm
- Max. Ramp Up Rate: 3 °C/second
- Preheat Temperature Range: 150°C to 200°C
- Peak Temperature Duration: 20-30 seconds
- UL Approval: E323964
Buy the Wurth Series SMT Angled Dual Socket: 621110284621
Enhance your electronic assemblies with the reliable Wurth SMT Angled Dual Socket. Designed for space-efficient PCB mounting, it offers gold-plated contacts, high durability, and UL94V-0 safety rating. Ideal for demanding environments, it supports up to 500 mating cycles, operates from -40°C to +105°C, and complies with international safety standards. Purchase online today to ensure your projects benefit from a high-quality, corrosion-resistant connection that guarantees long-term performance and safety in your electronic devices.
Order your Wurth Series SMT Angled Dual Socket today and ensure reliable PCB connections with high durability and excellent electrical performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 621110284621?
You can click on the BUY or RFQ button to purchase 621110284621 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 621110284621?
You can download the 621110284621 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 621110284621?
WURTH ELEKTRONIK
