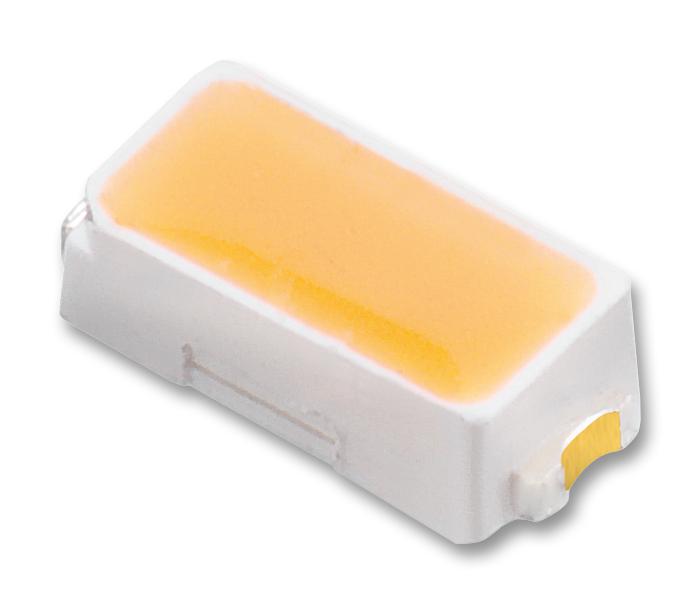

WURTH ELEKTRONIK 158301240 White Top View LED
This high-quality white top view PLCC LED from Wurth Elektronik offers a luminous flux of 65-75 lumens at 20 mA, with a forward voltage of 3.0-3.5 V and a correlated color temperature of 4000 K. It features an InGaN chip technology, a wide viewing angle of 120°, and an anode polarity mark. Designed for general electronic equipment, it withstands temperatures up to 130°C, with max power dissipation of 105 mW and peak forward current of 40 mA. Suitable for various optical and electronic applications, ensuring reliable operation within specified ratings.
WURTH ELEKTRONIK 158301240 White Top View LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Moonlight
- Lens Type: Top LED
- Size: 3014
- Polarity Mark: Anode
- Viewing Angle: 120°
- Luminous Flux: 65-75 lm at 20 mA
- Forward Voltage: 3.0-3.5 V at 20 mA
- Correlated Color Temperature: 4000 K
- Reverse Voltage: 5 V
- Peak Forward Current: 40 mA
- Power Dissipation: 105 mW
- Junction Temperature: 130°C
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Absolute Thermal Resistance Junction to Solder: 38 KW
- Max. Ramp-up Rate: 3°C/sec
- Max. Ramp-down Rate: 6°C/sec
Buy the Wurth Series PLCC LED: 158301240
Order the high-quality white top view PLCC LED from Wurth Elektronik today. This reliable LED features a luminous flux of 65-75 lumens at 20 mA, with a forward voltage of 3.0-3.5 V and a wide 120° viewing angle. It is designed for general electronic equipment, ensuring excellent optical and electrical performance within specified ratings. Easy to install and suitable for a wide range of applications, this LED guarantees durability and consistent brightness, making it an essential component for your projects.
Buy Wurth Series 158301240 high-performance white top view PLCC LED now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 158301240?
You can click on the BUY or RFQ button to purchase 158301240 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 158301240?
You can download the 158301240 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 158301240?
WURTH ELEKTRONIK
