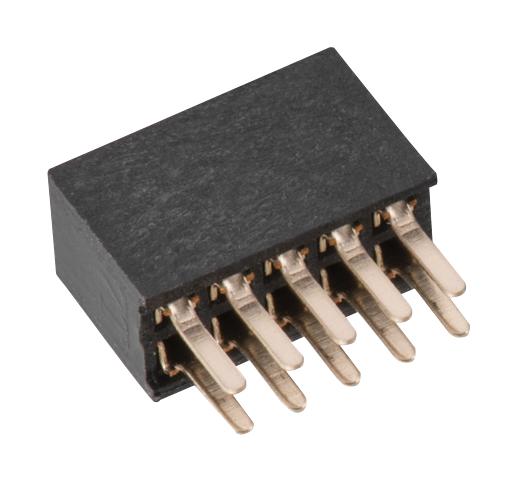

WURTH ELEKTRONIK 62202021821 Dual Socket Connector
The WURTH WR-PHD THT Straight Dual Socket is a high-precision electronic connector designed for reliable connections in various applications. With a pin pitch of 1.27 mm and a durable copper alloy contact material plated with gold, it ensures excellent electrical conductivity and longevity. Rated for up to 1 A current and operating within -40°C to +105°C, it features UL94V-0 flammability rated insulator in black. Suitable for fine-pitch assembly, it is ideal for electronic devices requiring high reliability and precise mating cycles. Compatible with standard wave soldering profiles, it supports safe, efficient manufacturing processes.
WURTH ELEKTRONIK 62202021821 Dual Socket Connector Specifications:
- Pitch: 1.27 mm
- Pins: 20
- Pin to Pin (Middle): 11.43 mm
- Length: 12.7 mm
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 V
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PAST (UL94V-0 flammability rating)
- Insulator Color: Black
- Durability: 500 mating cycles
- Soldering Profile: Supports wave soldering with Max peak temperature 260°C
- Certification: RoHS, REACh, UL
Buy the Buy WURTH Dual Socket Part Number 62202021821 Online
Purchase the WURTH dual socket connector online today to ensure high-quality, reliable connections for your electronic projects. Designed with a precise 1.27 mm pitch, gold-plated contacts for excellent conductivity, and rated for up to 1 A current, this component guarantees durability and consistent performance. Perfect for compact electronic circuits, it supports efficient manufacturing with wave soldering compatibility and high mating cycle endurance. Order now to streamline your assembly process with a trusted, high-performance connector designed for demanding applications.
Get WURTH dual socket connector today—built for high reliability and precision in electronic device assembly.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62202021821?
You can click on the BUY or RFQ button to purchase 62202021821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62202021821?
You can download the 62202021821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62202021821?
WURTH ELEKTRONIK
