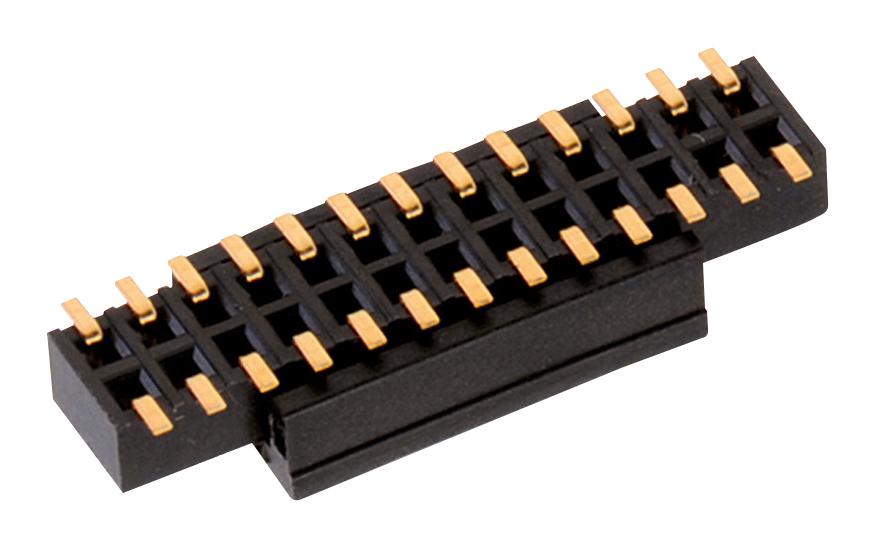

WURTH ELEKTRONIK 623310235321 Bottom Entry Socket Header
The bottom entry socket header is a compact electrical connector designed for PCB applications, featuring a 1.27 mm pitch, gold-plated contacts, and a black UL94 V-0 insulator. It is rated for 1 A and 100 VAC, with a durability of 500 mating cycles. Suitable for electronic equipment requiring reliable connections, it withstands temperatures from -40°C to +105°C. Its precise dimensions and materials ensure high performance and longevity in various industrial and consumer electronics.
WURTH ELEKTRONIK 623310235321 Bottom Entry Socket Header Specifications:
- Pitch: 1.27 mm
- Number of Pins: 10
- Pin to Pin (Middle): 5.08 mm
- Length: 6.75 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insulator Material: PAST
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 VAC
- Withstanding Voltage: 500 V (AC) for 1 min
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1000 MΩ
- Durability: 500 mating cycles
- Certification: RoHS, REACh, Halogen Free, UL Approved
Buy the WURTH 623310235321 – Reliable Socket Header for Industrial Applications
Enhance your electronic projects with the durable bottom entry socket header designed by WURTH, featuring a 1.27 mm pitch, gold-plated contacts, and UL94 V-0 insulator. Rated for 1 A and 100 VAC, it supports 500 mating cycles for long-term use. Its precise dimensions and high-quality materials ensure reliable and stable connections, ideal for PCB assembly in industrial and consumer electronics. Order online now for fast delivery and trusted performance in your applications.
Buy WURTH 623310235321 bottom entry socket header now and experience unmatched reliability and high-performance PCB connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 623310235321?
You can click on the BUY or RFQ button to purchase 623310235321 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 623310235321?
You can download the 623310235321 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 623310235321?
WURTH ELEKTRONIK
