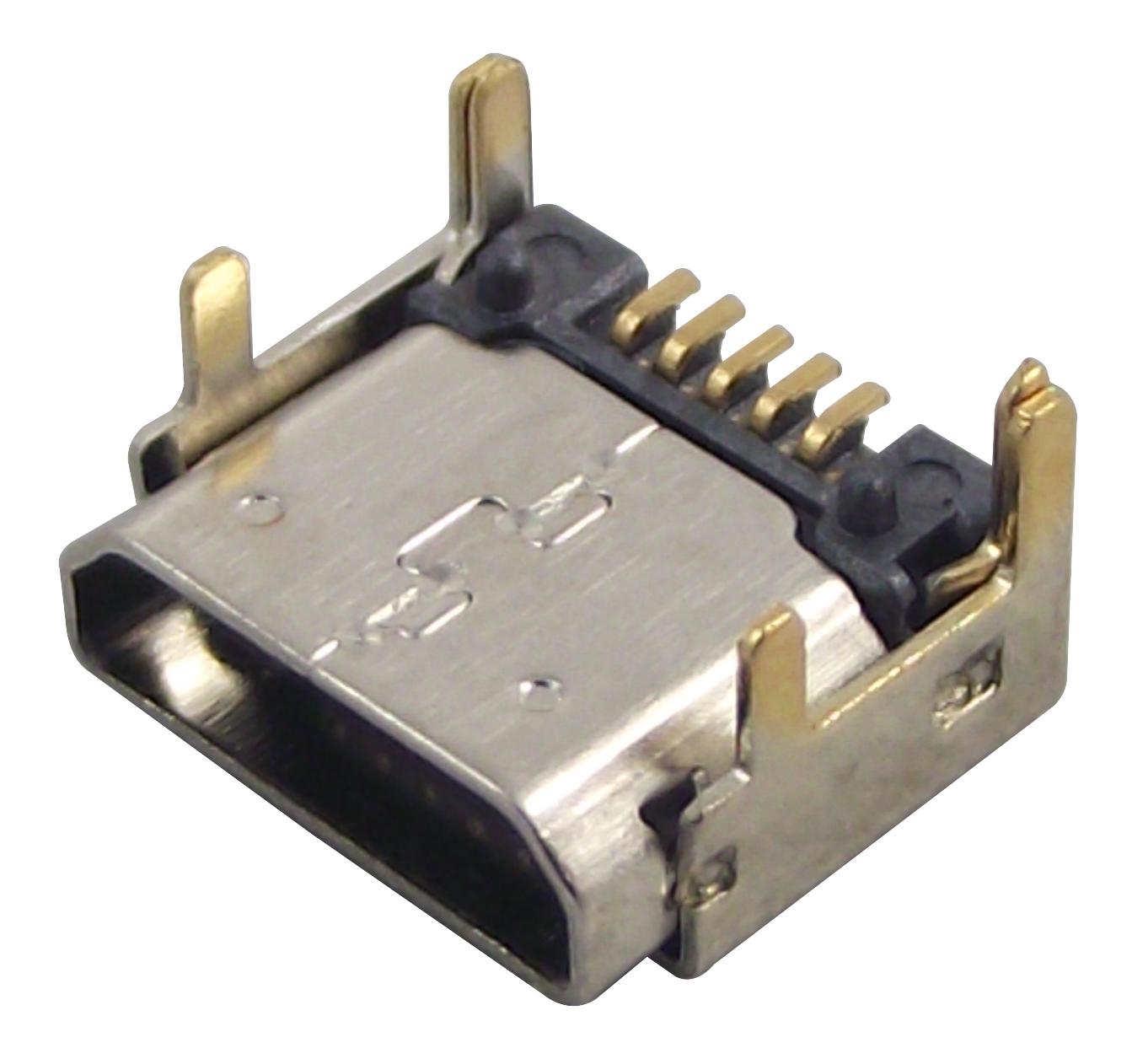

WURTH ELEKTRONIK 629105150521 Micro USB Connector
The Micro USB 2.0 connector with horizontal 5 contacts is designed for high-current applications and SMT mounting. This durable, RoHS-compliant connector features gold-plated contacts and stainless steel shielding for reliable performance. Suitable for general electronic equipment, it withstands operating temperatures from -40°C to +85°C, rated at 3 A with a working voltage of 30 VAC and withstand voltage of 100 V. Its construction ensures less than 30 mΩ contact resistance and a minimum insulation resistance of 1000 MΩ, making it ideal for mobile devices, audio, and data transfer applications.
WURTH ELEKTRONIK 629105150521 Micro USB Connector Specifications:
- Connector Type: Micro USB 2.0, Receptacle, Horizontal, 5 contacts
- Material Properties: Insulator - cP, Flammability - UL94 V-0, Contact Material - Copper Alloy, Contact Plating - Gold, Shielding Material - Stainless Steel, Shielding Plating - Nickel
- Electrical Properties: Rated Current - 3 A, Working Voltage - 30 VAC, Withstanding Voltage - 100 V (AC), Contact Resistance - <30 mΩ, Insulation Resistance - ≥1000 MΩ
- Mechanical & Environmental: Operating Temperature Range -40°C to +85°C, Mounting Type - SMT, Certifications - RoHS, UL, IEC 61249-2-21
- Durability & Reliability: 10,000 mating cycles, Halogen-free, Conforms to IEC, RoHS, REACh standards
- Reflow Profile & Packaging: Suitable for reflow soldering per IPC/JEDEC J-STD-020E, packaged in bulk for assembly
- Application Suitability: Suitable for mobile, audio, and computing devices requiring reliable, high-current USB connections.
Buy the WURTH Series Micro USB: 629105150521
Get the high-quality WURTH Micro USB connector with 5 contacts, gold-plated for excellent conductivity, stainless steel shield for durability, and SMT mounting. Designed for reliable, high-current data and power transfer in mobile devices, audio equipment, and computing hardware. It features a robust construction rated at 3 A and 30 VAC, withstanding over 10,000 mating cycles. This RoHS-compliant connector meets international standards, ensuring safety and performance for your electronic projects. Purchase online now for seamless integration into your next assembly with trusted quality.
Order your WURTH Series Micro USB 629105150521 today and give your electronics durable, high-current connection reliability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 629105150521?
You can click on the BUY or RFQ button to purchase 629105150521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 629105150521?
You can download the 629105150521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 629105150521?
WURTH ELEKTRONIK
