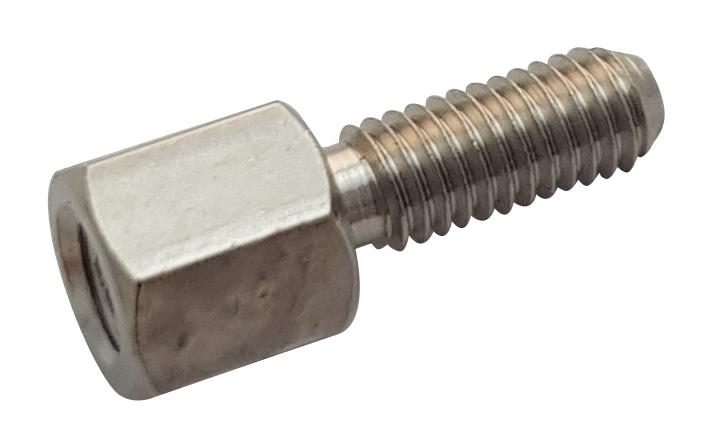

WURTH ELEKTRONIK 971090324 Brass Spacer Stud
The Würth Elektronik WA-SBRIE 971090324 is a brass spacer stud designed to provide secure and reliable mounting for electronic components. Constructed from brass and finished with nickel plating, this spacer offers excellent corrosion resistance and durability. It is RoHS compliant and conforms to REACH regulations, ensuring environmental responsibility. This component is suitable for a wide range of applications in general electronic equipment, offering a robust solution for maintaining component spacing and stability. Proper storage and handling are crucial to maintain its integrity, and customers should consult Würth Elektronik for approval when using in safety-critical applications.
WURTH ELEKTRONIK 971090324 Brass Spacer Stud Specifications:
- Dimensions_SW: mm
- Dimensions_A: mm
- Material: Brass
- Surface: Nickel (Ni)
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free_IEC: Conform [IEC 61249-2-21]
- Halogen Free_JEDEC: Conform [JEDEC JS709B]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Length_L: 9 mm
- Inner Thread: M3
- Outer Thread: M3
- Inner Thread Length_Tli: 5 mm
- Outer Thread Length_Tlo: 8 mm
- Wrench_SW: 5.5 mm
- Description: WA-SBRIE Brass Spacer Stud
- General Tolerance: DIN ISO 2768-1m
- Order Code: 971090324
