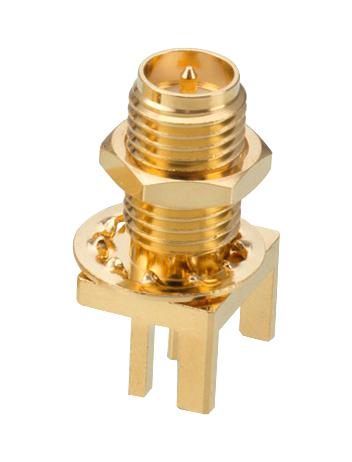

WURTH ELEKTRONIK 63012242124506 Reverse Polarity SMA Jack
The Würth Elektronik WR-RPSMA Reverse Polarity SMA Jack is a PCB end launch connector designed for reliable high-frequency signal transmission. It features gold-plated brass contacts and a PTFE insulator, ensuring excellent electrical performance and durability. This connector is ideal for applications requiring a reverse polarity SMA connection, such as in test and measurement equipment, RF systems, and communication devices. It is designed for frequencies up to 18 GHz and offers low insertion loss and VSWR. The connector's robust construction and gold plating provide excellent corrosion resistance and long-term reliability.
WURTH ELEKTRONIK 63012242124506 Reverse Polarity SMA Jack Specifications:
- PCB Thickness: 1.6 mm
- Panel Thickness: 2 - 2.4 m
- Insulator Material: PTFE
- Insulator Color: White
- Center Contact Material: Brass
- Center Contact Plating: Gold, min. 0.76µm over Nickel
- Body Material: Brass
- Body Plating: Gold, min. 0.076µm over Nickel
- Nut Material: Brass
- Nut Plating: Gold, min. 0.076µm over Nickel
- Lock Washer Material: Brass
- Lock Washer Plating: Gold, min. 0.076µm over Nickel
- Interface: MIL-STD-348
- Connector Type: RP SMA
- Gender: Jack
- Orientation Type: Straight
- Operating Temperature: -65 up to +165 °C
- Impedance: 50 Ω
- Frequency Range: DC~18 GHz
- VSWR (DC~12.4 GHz): 1.2 (max)
- Insertion Loss (DC~12.4 GHz): 0.14 dB (max)
- VSWR (12.4 GHz~18 GHz): 1.4 (max)
- Insertion Loss (12.4 GHz~18 GHz): 0.2 dB (max)
- Insulation Resistance: 500 MΩ (min)
- Contact Resistance Initial: 3 mΩ (max)
- Contact Resistance After Test: 4 mΩ (max)
- Withstanding Voltage: 1000 V (RMS) min
- Center Contact Retention (Axial): 26.7 N (min)
