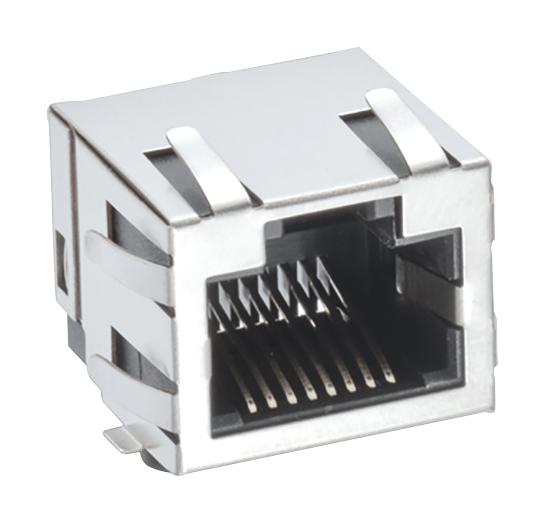

WURTH ELEKTRONIK 634008149721 Shielded RJ45 Connector
The WR-MJ Modular Jack Tab Up is a horizontally shielded SMT connector designed for high-reliability electronic applications. Featuring 8P8C configuration, it ensures secure, EMI-resistant connections with durable gold-plated contacts, compliant with UL94 V-0 flammability standards and RoHS certified. Operating efficiently between -40°C and +85°C, it withstands 120 V AC and 1,000 V withstand voltage. Ideal for networking hardware and electronic equipment requiring robust, shielded RJ45 connections with a maximum current of 1.5 A and a resistance below 20 mΩ. Suitable for industrial and commercial networking solutions.
WURTH ELEKTRONIK 634008149721 Shielded RJ45 Connector Specifications:
- Number of Pins: 8P8C
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Insulator Material: PAST
- Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5 A
- Working Voltage: 120 V (AC)
- Withstanding Voltage: 1000 V (AC, 1 min)
- Contact Resistance: <20 mΩ
- Insulation Resistance: >500 MΩ
- Certification: RoHS, REACh
- Material: Brass shield, Nickel plating
- Dimensions: Standard size compatible with industry standards
Buy the Buy WURTH ELEKTRONIK Modular Jack Part Number 634008149721 Online
Purchase the WURTH ELEKTRONIK shielded SMT modular jack online today to benefit from high-quality, secure, and reliable network connections. Designed with gold-plated contacts, superior insulation, and robust construction, this connector is ideal for industrial and commercial applications. It ensures excellent EMI resistance and long-term durability, compliant with international standards such as RoHS and UL94 V-0. With easy installation and guaranteed performance, buy now to enhance your electronic hardware with confidence and precision.
Order your WURTH ELEKTRONIK Series634008149721 shielded SMT modular jack today and ensure robust, EMI-resistant networking connections for your electronic projects.
