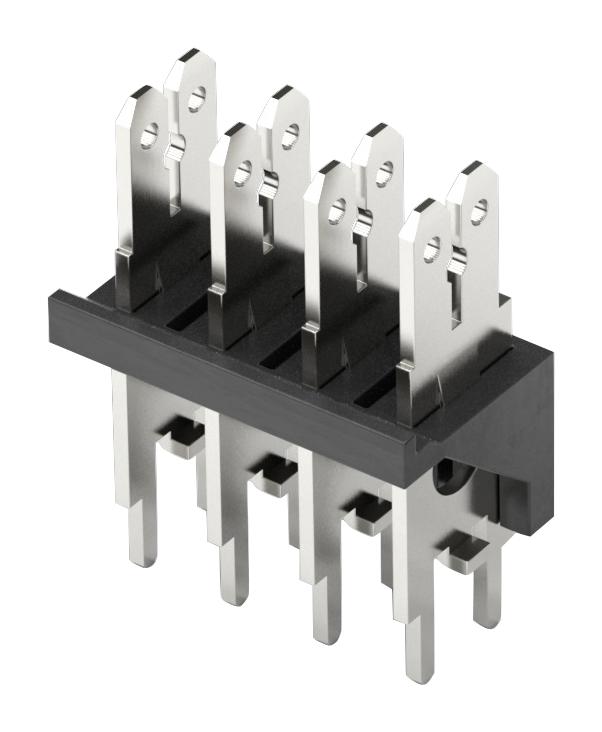

WURTH ELEKTRONIK 638207222007 Vertical Header Connector
The WURTH ELEKTRONIK WR-FAST Male Vertical Header with a 5.08 mm pitch is a reliable, high-quality connector designed for electronic applications requiring secure and durable connections. Crafted from stud and pin materials with tin plating, it supports up to 16 A current and can operate in temperatures from -30°C to +120°C. This header features stamped contact types, UL94 V-0 insulator flammability rating, and a durable design with 500 mating cycles. Certified RoHS, REACH, and glow wire approved, it ensures safety and compliance in various electronic systems, delivering dependable performance in industrial and consumer electronics.
WURTH ELEKTRONIK 638207222007 Vertical Header Connector Specifications:
- Pitch: 5.08 mm
- Material: Steel with Tin plating
- Insulator Material: PC (Polycarbonate)
- Insulator Flammability Rating: UL94 V-0
- Contact Resistance: 20 milliohm
- Rated Current: 16 A
- Working Voltage: 300 VAC
- Temperature Range: -30°C to +120°C
- Durability: 500 mating cycles
- Withstanding Voltage: 1600 VAC for 1 min
- Insulation Resistance: 5 Megaohms
- Certifications: RoHS, REACH, Glow Wire (IEC 60335-1), cULus
- Pin to Pin Middle Distance: 30.48 mm
- Type: Stamped contact, vertical header
Buy the WURTH ELEKTRONIK 638207222007 – Reliable Vertical Header for Industrial Applications
Secure your electronic connections with the high-quality vertical header connector from WURTH ELEKTRONIK. Featuring a 5.08 mm pitch and rated for 16 A, this connector offers dependable performance and durability. It is designed for industrial, automation, and consumer electronics, ensuring stable contact and long cycle life. With UL94 V-0 flammability rating, RoHS, REACH, and glow wire certifications, it guarantees safety and compliance for critical electronic systems. Easy to install and suitable for PCB mounting, enhancing your project reliability.
Buy WURTH ELEKTRONIK 638207222007 now and experience unmatched reliability and performance with a durable connector supporting high current in demanding environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638207222007?
You can click on the BUY or RFQ button to purchase 638207222007 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638207222007?
You can download the 638207222007 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638207222007?
WURTH ELEKTRONIK
