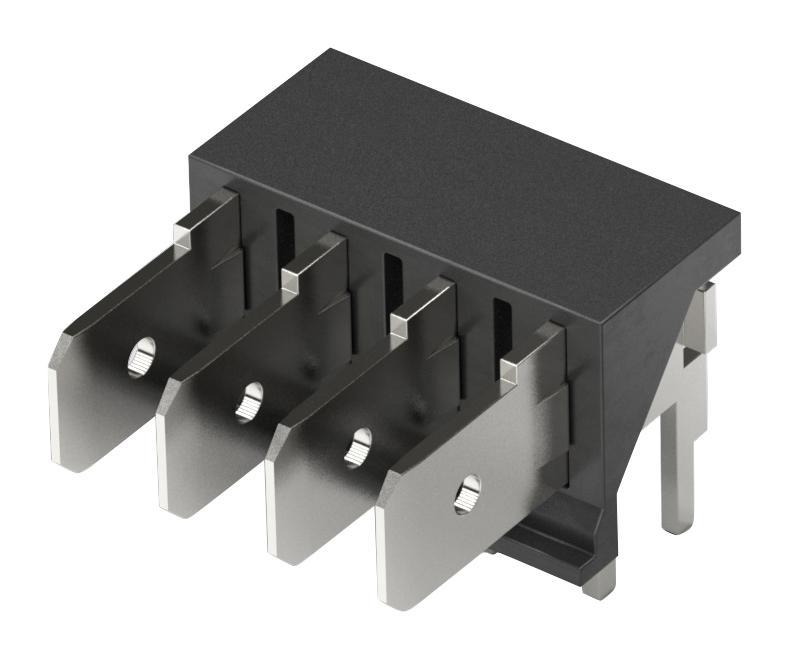

WURTH ELEKTRONIK 638263122006 Header Connector
The WR-FAST Male Right Angled Header Blade is a reliable, high-quality connection component designed for electronic and industrial applications. With a pitch of 5.08 mm and durability of 500 mating cycles, it features tin-plated steel contacts, UL94 V-0 insulator material, and a working temperature up to +120°C. The component ensures safe, stable connections with rated current of 16 A and a voltage rating of 300 V AC. Certified for RoHS, REACh, and glow wire standards, it supports efficient and durable electronic assemblies.
WURTH ELEKTRONIK 638263122006 Header Connector Specifications:
- Pitch: 5.08 mm
- Contact Material: Steel
- Contact Plating: Tin
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Durability: 500 mating cycles
- Operating Temperature: -30°C to +120°C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: ≥ 5 Mo
- Withstanding Voltage: 1600 V (AC) for 14 minutes
- Contact Resistance: ≤ 20 mo
- Certification: RoHS, REACh, Glow Wire, cULus
- Dimensions: Length 29.52 mm, Pitch 5.08 mm, Header Blade thickness 6.3 mm
Buy the WURTH ELEKTRONIK 638263122006 – Reliable Header Connectors for Industrial Applications
Secure your electronic assemblies with the high-quality right-angled header connector from WURTH ELEKTRONIK. Designed with a 5.08 mm pitch, it features durable tin-plated steel contacts and UL94 V-0 rated PC insulators, ensuring safety and reliability in demanding environments. Rated for 16 A and 300 V AC, it supports all your industrial and electronic connection needs. Certified with RoHS, REACh, and glow wire standards, this connector guarantees long-lasting performance. Buy online now for quick delivery and trusted quality.
Order your WURTH ELEKTRONIK 638263122006 right-angled header today and ensure robust, dependable connections in your electrical projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638263122006?
You can click on the BUY or RFQ button to purchase 638263122006 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638263122006?
You can download the 638263122006 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638263122006?
WURTH ELEKTRONIK
