WURTH ELEKTRONIK 65503503230503 RF Coaxial Connector

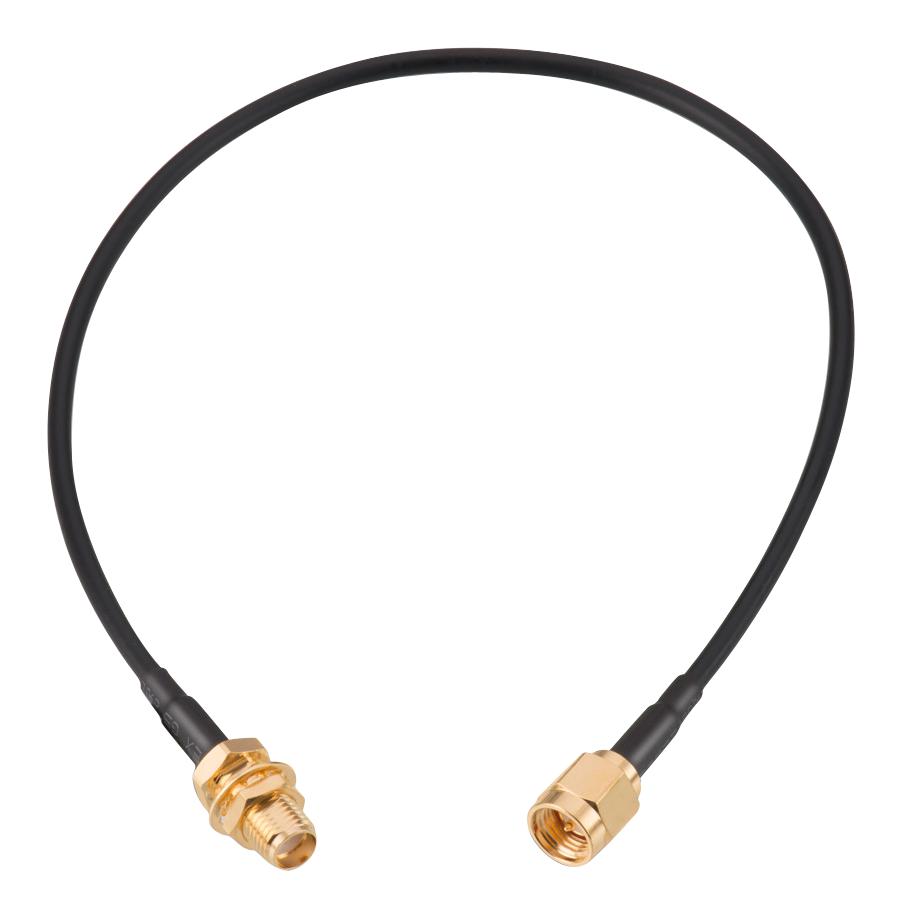

This product is a SMA straight connector set designed for RF applications, including a plug and bulkhead jack configuration on flexible RG174 cables. Made with high-quality brass components plated with gold and nickel, it ensures excellent electrical conductivity and durability. Suitable for telecommunications, test and measurement equipment, and antennas, it offers impedance compatibility of 50 ohms, operating from -20°C to +80°C. Featuring robust construction, it supports up to 500 mating cycles, with a maximum working voltage of 250V and excellent shielding performance for reliable signal integrity.
WURTH ELEKTRONIK 65503503230503 RF Coaxial Connector Specifications:
- Ferrule Material: Brass
- Ferrule Plating: Gold, min. 0.076 um over Nickel
- Nut Material: Brass
- Insulator Material: PIFE
- Insulator Color: White
- Center Contact Material: Brass
- Center Contact Plating: Gold, min. 0.76 um over Nickel
- Body Material: Brass
- Body Plating: Gold, min. 0.076 um over Nickel
- Heat Shrink Tube Material: PE
- Heat Shrink Tube Color: Black
- Connector Type: SMA (Straight Plug to SMA Straight)
- Impedance: 50 Ohms
- Operating Temperature: -20°C to +80°C
- Withstanding Voltage: 500 V (AG)
- Insulation Resistance: 1000 MΩ at 120 s
- Mating Cycles: 500
- Recommended Torque: 57 N·cm
- Max Signal Attenuation: 0.42 dB at DC-1 GHz
- VSWR: 1.3 max at DC-1 GHz
Buy the Buy WIRTH ELEKTRONIK SMA Straight Connector Part Number 65503503230503 Online
Purchase the WIRTH ELEKTRONIK SMA Straight Connector online today to upgrade your RF setup with a premium, reliable connector. This high-quality SMA connector features gold-plated brass contacts for excellent electrical performance and durability, supporting 50 ohms impedance from -20°C to +80°C. Perfect for telecommunications, measurement equipment, and antenna connection, it offers robust construction supporting 500 mating cycles without signal degradation. Enjoy fast shipping, competitive pricing, and the confidence of quality when you buy this high-performance coaxial connector from our trusted online store.
Order your WIRTH ELEKTRONIK SMA Straight Connector with durable gold-plated contacts today and ensure your RF connections are reliable and high-performing.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503230503?
You can click on the BUY or RFQ button to purchase 65503503230503 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503230503?
You can download the 65503503230503 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503230503?
WURTH ELEKTRONIK
