WURTH ELEKTRONIK 65503503515307 RF SMA Connector

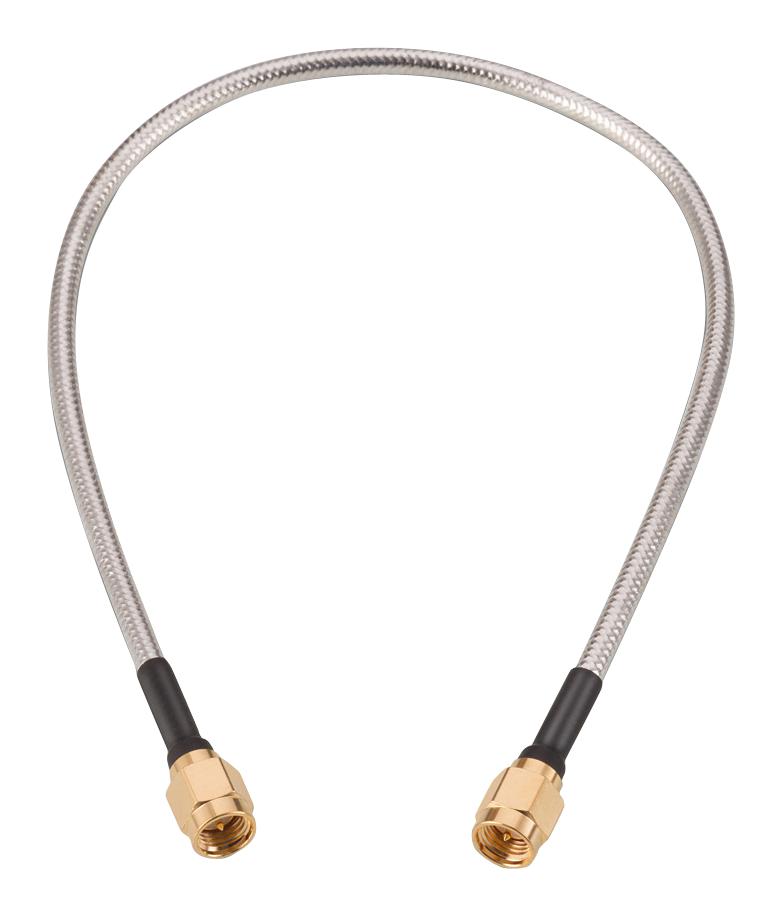

This SMA straight connector set is designed for reliable RF signal transmission, featuring a brass body with gold-plated contacts for optimal conductivity. It includes a hand-formable cable with black heat shrink tubing for secure and durable connections. The connector is RoHS compliant, operates from -65°C up to +165°C, and has impedance matching for DC to 18 GHz frequencies. Suitable for high-frequency applications, it offers excellent environmental resistance and robust mechanical properties, ideal for professional electronic equipment and communication systems.
WURTH ELEKTRONIK 65503503515307 RF SMA Connector Specifications:
- Connector Type: SMA Straight Plug to SMA Straight Plug
- Material: Brass Body, Beryllium Copper Center Contact
- Contact Plating: Gold, min. 0.76 μm over Nickel
- Impedance: DC to 18 GHz, 50 Ω
- Frequency Range: DC to 18 GHz
- Operating Temperature: -65°C to +165°C
- VSWR: 1.3 max.
- Insertion Loss: 0.67 dB at 18 GHz
- Insulator Material: PTFE, White, Passivated stainless steel retention ring
- Heat Shrink Tube: PE, Black, with silicone gasket, Red gasket color
- Mechanical Properties: Mating cycle: 500, Axial retention: 26.7 N min
- Recommended Mating Torque: 87 N·cm nominal
- Cable Type: Hand-formable, Shielded with tin-soaked body
- Compliance: RoHS compliant
- Max Working Voltage: 335 V (min.)
- Packaging: Bag, 50 pieces per package
Buy the Wirth Series SMA Connector: 65503503515307
Buy your Wirth Series SMA connector 65503503515307 online now for dependable RF connections up to 18 GHz. Crafted with high-quality brass and gold-plated contacts, this connector ensures optimal conductivity and environmental resistance. Suitable for professional electronic applications, it features a durable design with a high mating cycle count, excellent impedance matching, and RoHS compliance. Ideal for communication systems, test equipment, and high-frequency data transmission, this SMA connector guarantees reliable performance, easy installation, and long-term durability for your demanding RF projects.
Order your Wirth Series SMA connector 65503503515307 today and secure high-frequency signal integrity for your RF projects.
