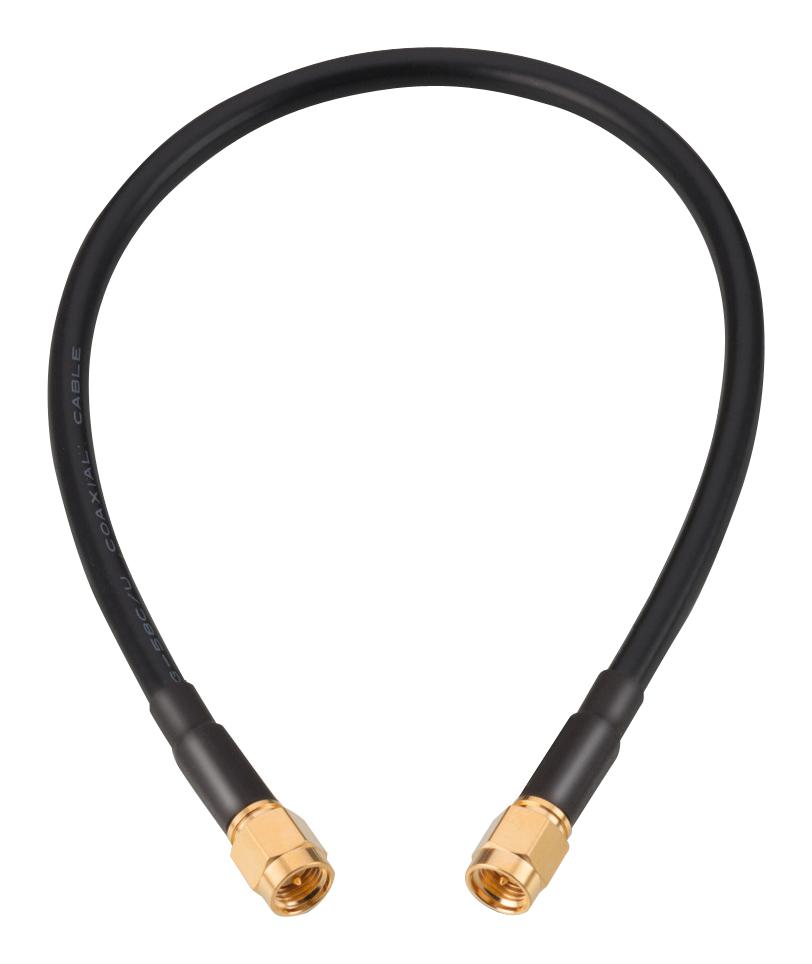

WURTH ELEKTRONIK 65503503530501 SMA Connector
This SMA connector set features a straight plug on flexible RG58 cable suitable for high-frequency applications up to 1 GHz. Crafted with brass components, gold over nickel plating, and a silicone gasket, it ensures excellent electrical performance and durability. The connector provides a VSWR of 1.3 max and an impedance of 50 ohms, making it ideal for professional radio, communication, and testing equipment. Designed for a maximum working voltage of 335 RMS, it supports reliable connections in demanding environments, with a robust mechanical retention and precise gold-plated contacts for optimal signal integrity.
WURTH ELEKTRONIK 65503503530501 SMA Connector Specifications:
- Connector Type: SMA Straight Plug
- Cable Type: Flexible RG58 WR-CXASY
- Center Contact Material: Brass with Gold plating, min. 0.76 μm over Nickel
- Body Material: Brass with Gold plating, min. 0.076 μm over Nickel
- Ferrule Material: Brass with Gold plating, min. 0.076 μm over Nickel
- Gasket Material: Silicone, Color Red
- Heat Shrink Tube Material: PE, Color Black
- Operating Temperature: -20°C to +80°C
- Impedance: 50 Ω
- VSWR: 1.3 max
- Insertion Loss: Max 0.03 dB from DC to 1 GHz
- Attenuation: Typically 0.20 dB at 1 GHz
- Insulation Resistance: Min 1000 MΩ at 500 V DC
- Withstanding Voltage: Min 500 V (AQ), 1000 V (AMS)
- Working Voltage: 335 V (RMS), Min 18 V
- Mating Cycles: 500
- Maximum Torque: 57 Ncm
- Min Bend Radius: 49.5 mm
- Cable Retention: Min 89 N
- Dimensions and physical details are optimized for high-performance RF connections in professional electronic and communication systems.
Buy the Wirth Elektronik SMA – Reliable SMA Connector for Industrial Applications
Order the Wirth Elektronik SMA connector for flexible RG58 cables, featuring gold-plated contacts, stainless steel retention ring, and silicone gasket. Perfect for high-frequency applications up to 1 GHz, it ensures reliable, low-loss signal transmission in professional radio, test equipment, and communication systems. The brass body offers durability, while the gold plating minimizes corrosion and ensures consistent electrical contact. With a VSWR of 1.3 max, maximum working voltage of 335 RMS, and 500 mating cycles, this connector provides excellent performance for demanding RF environments. Buy online today for quality and reliability.
Get Wirth Elektronik SMA connector today—designed for high-frequency, durable RF connections in advanced communication systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503530501?
You can click on the BUY or RFQ button to purchase 65503503530501 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503530501?
You can download the 65503503530501 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503530501?
WURTH ELEKTRONIK
