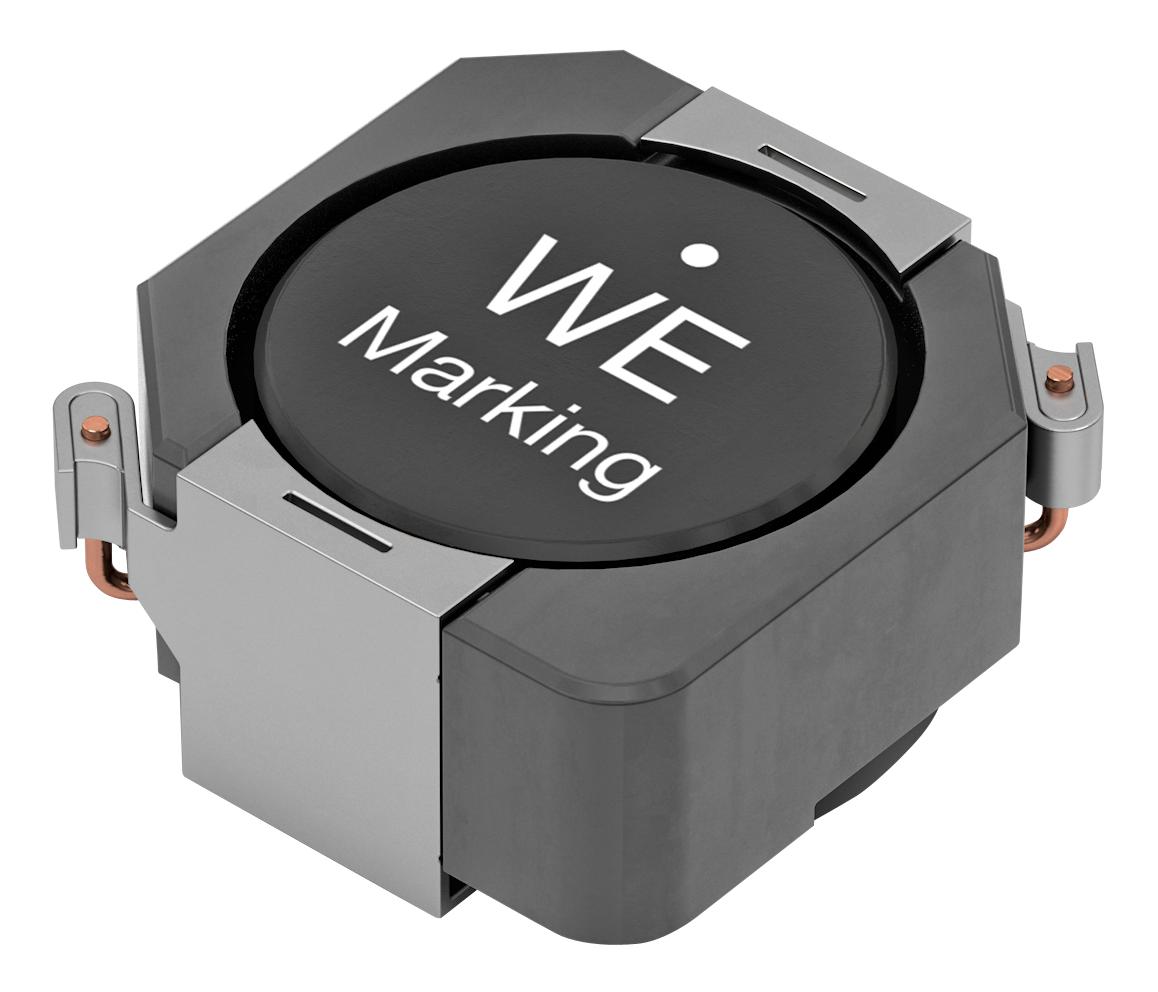

WURTH ELEKTRONIK 7447773102 Power Inductor
This shielded power inductor from Wurth Elektronik features high inductance with a typical value of 1,200 μH, rated at 0.3 A for continuous current. It operates up to 150°C and complies with RoHS, REACH, and JEDEC standards, making it suitable for high-performance electronic equipment requiring reliable magnetic components. Its compact design ensures minimal noise and stable impedance, ideal for power management circuits in industrial and consumer electronics. The inductor’s insensitivity to external interference ensures clean signal transmission and efficient energy storage under varying operational conditions.
WURTH ELEKTRONIK 7447773102 Power Inductor Specifications:
- Inductance: 1,200 μH
- Rated Current: 0.3 A
- Saturation Current: 0.38 A typ.
- DC Resistance: 2850 mΩ @ 20°C (typ.), 3300 mΩ @ 20°C (max.)
- Self Resonant Frequency: 1.9 MHz
- Operating Voltage: 120 V
- Ambient Temperature Range: -40°C to +110°C
- Operating Temperature: -40°C to +150°C
- RoHS, REACH, Halogen Free, JEDEC 709B compliant
- Certifications: RoHS, REACH, JEDEC
- Mounting: Surface Mount Technology
- Packaged in tape and reel suitable for automated SMT assembly
Buy the Wurth Elektronik Series Shielded Power Inductor: 7447773102
Order the Wurth Elektronik shielded power inductor 7447773102 online now to ensure your electronic projects benefit from a high-quality, reliable magnetic component. This inductor offers 1,200 μH inductance, rated at 0.3 A, and is compliant with RoHS, REACH, and JEDEC standards for safety and environmental considerations. Its compact SMT design facilitates easy integration into power assemblies, delivering stable performance under high temperature conditions up to 150°C. Perfect for industrial, automotive, and consumer electronics requiring efficient energy storage and noise suppression during operation.
Get Wurth Elektronik shielded power inductor 7447773102 today—engineered for high inductance, durability, and optimal power management in electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447773102?
You can click on the BUY or RFQ button to purchase 7447773102 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447773102?
You can download the 7447773102 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447773102?
WURTH ELEKTRONIK
