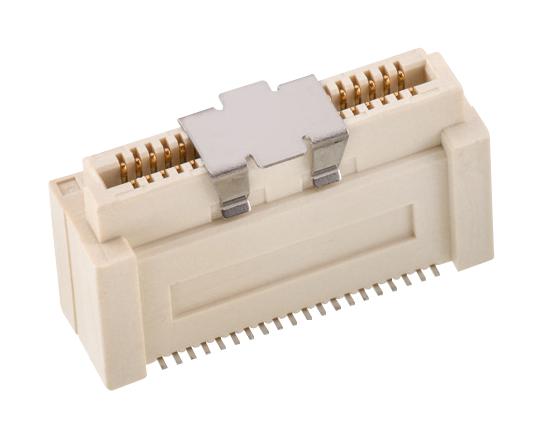

WURTH ELEKTRONIK 658801103040 shrouded connector
The SMT female shrouded vertical receptacle is designed for reliable interconnections in electronic assemblies, featuring a shrouded housing for secure mating. It has a compact footprint with a pitch of 0.8mm, height of 11.75mm, and incorporates a copper alloy contact with selective gold plating, ensuring excellent conductivity and corrosion resistance. Suitable for automation and high-density applications, it supports up to 30 mating cycles and operates within -55°C to +85°C. Packaged in tape and reel for easy automated assembly, this connector is RoHS compliant and UL94 V-0 rated for safety.
WURTH ELEKTRONIK 658801103040 shrouded connector Specifications:
- Pitch: 0.8 mm
- Height: 11.75 mm
- Contact Material: Copper Alloy with Selective Gold Plating
- Number of Mating Cycles: 30
- Operating Temperature: -55°C to +85°C
- Insulator Flammability Rating: UL94 V-0
- Packaged in Tape and Reel with Cap
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Contact Resistance: Max. 50 mΩ
- Insulation Resistance: Min. 100 MΩ
- Soldering: Industry-standard reflow profile, compliant with IPC/JEDEC standards
- RoHS and REACH compliant
Buy the Wurth Elektronik 658801103040 – Reliable SMT Female Shrouded for Industrial Applications
Purchase the Wurth Elektronik series 658801103040 shrouded connector online today and benefit from fast delivery, high-quality manufacturing, and proven reliability. Designed for automated PCB assembly, it features gold-plated contacts for excellent conductivity and corrosion resistance. Its compact design with 0.8mm pitch supports high-density applications, making it suitable for various industrial, automation, and electronic projects. Secure your supply chain by ordering now from authorized distributors and ensure your equipment benefits from durable, RoHS-compliant connectivity solutions.
Order your Wurth Elektronik Series658801103040 female shrouded connector today and ensure secure, high-density connections for your industrial electronics.
