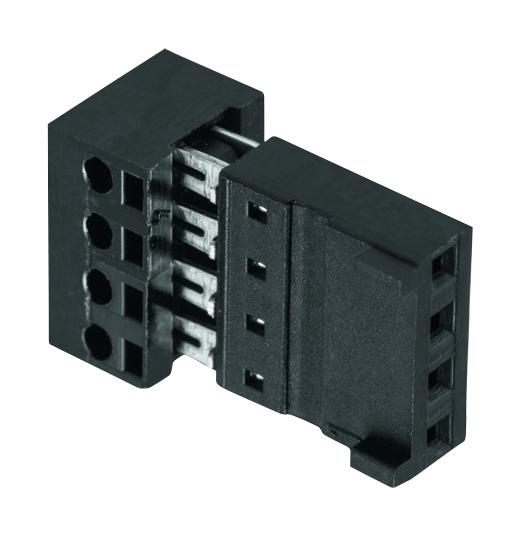

WURTH ELEKTRONIK 661005151922 Electrical PCB Connector
This is a general-purpose PCB connector designed for reliable connections in electronic circuits, featuring a PBT insulator with UL94V0 flammability rating and tin-plated phosphor bronze contact metal. Suitable for stranded wires 24-22 AWG, it supports up to 3 A current at 50 VAC, with a withstand voltage of 500 VAC and insulation resistance exceeding 1000 MΩ. The connector is RoHS compliant, operates from -40°C to +125°C, and offers a durability of 25 mating cycles, making it ideal for versatile electronic applications requiring safety and durability.
WURTH ELEKTRONIK 661005151922 Electrical PCB Connector Specifications:
- Material: PBT insulator with UL94V0 flammability rating
- Contact Material: Phosphor bronze, tin-plated
- Color: Black
- Current Rating: 3 A
- Working Voltage: 50 VAC
- Withstanding Voltage: 500 VAC/min
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ MAX
- Operating Temperature: -40°C to +125°C
- Wire Range: 24-22 AWG stranded wire
- Mating Cycles: 25
- RoHS Compliant
- Packaging: 2.54 mm pitch, tubes
- Dimensions and Tolerances: General tolerance as per engineering standards
Buy the Wurth Elektronik 661005151922 – Reliable PCB Connector for Industrial Applications
Enhance your electronic assemblies with this reliable PCB connector designed for versatile circuit connections. Featuring a durable PBT insulator, tin-plated phosphor bronze contacts, and supporting stranded wires 24-22 AWG, it ensures safety, longevity, and excellent electrical performance. Suitable for applications demanding high safety standards, it operates from -40°C to +125°C, supports 3 A current at 50 VAC, and offers 25 mating cycles. Ideal for industrial electronics, automation, and control systems, purchase online today for dependable connectivity solutions.
Buy Wurth Elektronik 661005151922 now and experience unmatched reliability and performance for your electronic projects and industrial needs.
