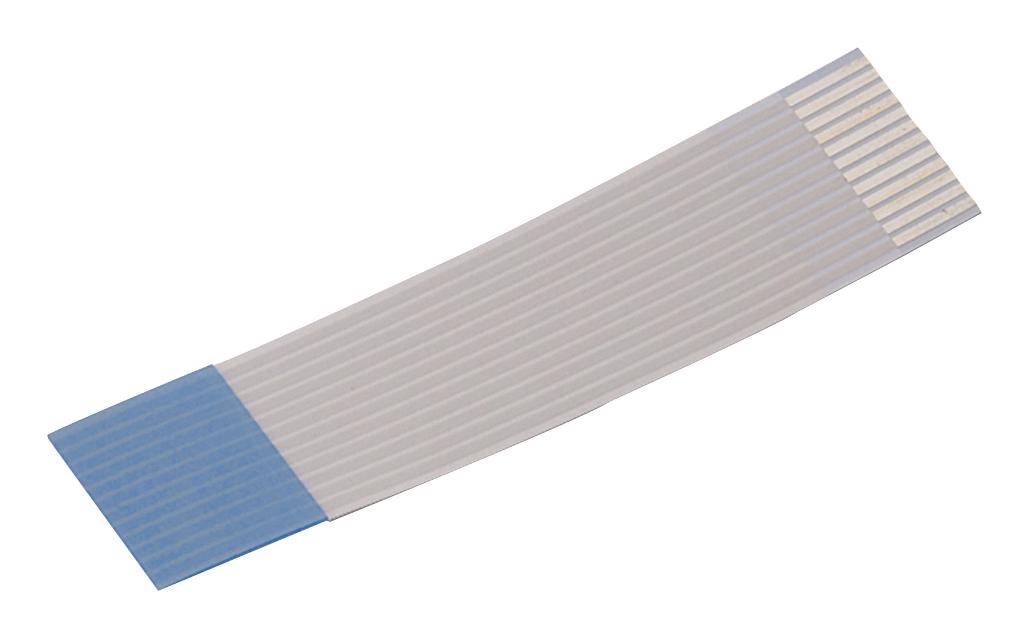

WURTH ELEKTRONIK 686704100001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable is a high-quality, Type 2, 1.00 mm pitch flexible cable designed for reliable electronic connections in various devices. It features durable PET insulator and transparent blue tape, offering excellent moisture and temperature resistance, suitable for a wide temperature range from -30°C to +105°C. Certified for durability with 20 mating cycles, UL, cULus, and RoHS compliant, this cable ensures high electrical and mechanical performance, including rated current of 1 A and working voltage of 60 V, making it ideal for flexible electronic applications.
WURTH ELEKTRONIK 686704100001 Flexible Flat Cable Specifications:
- Pitch P: 1 mm | Tolerance: 0.08 mm
- Total Pitch: 3 mm | Tolerance: +0.1 mm
- Length L: 100 mm | Tolerance: 3 mm
- Width Ww: 5 mm | Tolerance: 0.1 mm
- Margin M: 1 mm | Tolerance: 0.12 mm
- Conductor Width Cw: 0.7 mm | Tolerance: 0.08 mm
- Conductor Thickness Ct: 0.035 mm | Tolerance: 0.0 mm
- Support Tape Length 1 and 2: 10 mm | Tolerance: 2 mm
- Strip Lengths: 5 mm | Tolerance: +0.1 mm
- Support Tape Thickness St: 0.225 mm | Tolerance: 0.01 mm
- Insulation Thickness D1: 0.043 mm | Tolerance: 0.01 mm
- Operating Temperature: -30°C to +105°C
- Rated Current Ip: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ minimum at 500 V DC
- Withstanding Voltage: 500 V AC for 1 min
- Conductor Resistance: 1.09 Ω max
- Contact Resistance: 20 mΩ max
- Durability: 20 mating cycles
- Materials: PET insulator, copper contact, tin plating
- Certifications: UL, RoHS, cULus
- Shock and vibration resistant, suitable for industrial and consumer electronics
Buy the Wurth Elektronik Series Flat Flexible Cable: 686704100001
Order the Wurth Elektronik Flat Flexible Cable online now and experience high-quality, reliable electronic connectivity with excellent moisture and temperature resistance. Designed for use in a variety of electronic devices, this 1.00 mm pitch flexible cable offers durability, UL and RoHS compliance, and a temperature range from -30°C to +105°C. Ideal for industrial, consumer, and professional electronics, it ensures stable performance with rated current of 1 A and working voltage of 60 V. Secure your supply of this essential connector today for dependable and flexible electronic assemblies.
Get Wurth Elektronik 686704100001 today—built for flexible, reliable electronic connections with high durability and safety standards.
