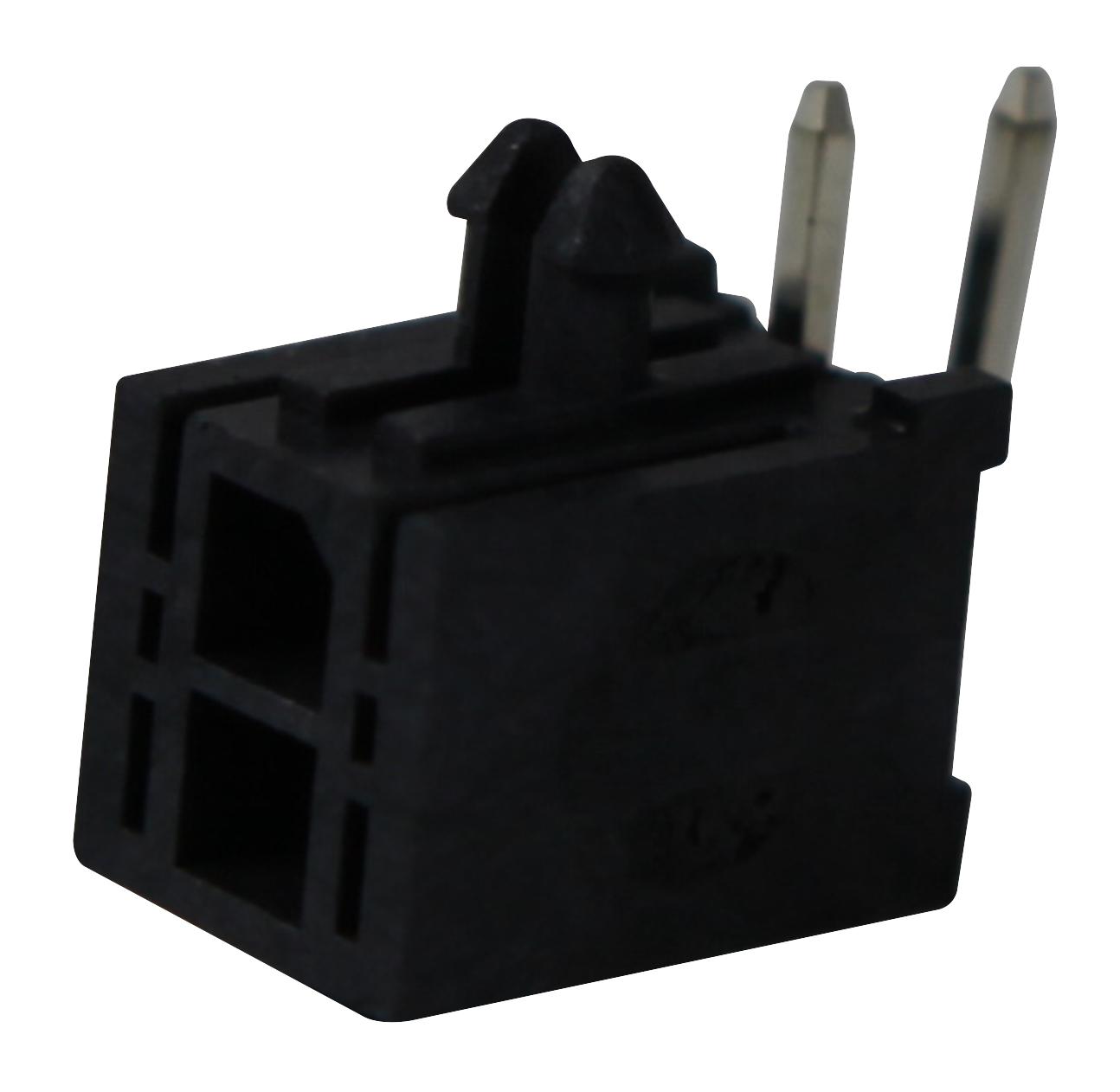

WURTH ELEKTRONIK 66201021022 Dual Row Connector
The WR-MPC3 is a compact, reliable right-angle male dual row connector designed for industrial and electronic applications. Constructed with a copper alloy contact material and tin plating for excellent durability and conductivity, it features a 3.00mm pitch, 5A current rating, and operating temperature range from -40°C to +105°C. Compliant with RoHS and lead-free standards, it supports soldering via JEDEC wave process and has a contact resistance of max 10 milliohm. Suitable for PCB layouts with dimensions tailored for precise electronic connections, ensuring high performance in demanding environments.
WURTH ELEKTRONIK 66201021022 Dual Row Connector Specifications:
- Contact Material: Copper Alloy
- Contact Plating: Tin
- Flammability Rating: UL94-VO
- Insulator Material: LCP (Liquid Crystal Polymer)
- Temperature Rating: -40°C to 105°C
- Current Rating: 5A
- Working Voltage: 250V AC
- Insulator Resistance: >1000 MOHM
- Dielectric Withstanding Voltage: 1500V AC/MN
- Contact Resistance: 10 mOHM Max
- Soldering: JEDEC lead-free wave soldering process
- Dimensions: Pitch 3.00mm, suitable for PCB layout, detailed pin and pinning measurements provided
- RoHS Compliant: Yes
Buy the Wurth Elektronik 66201021022 – Reliable Dual Row Connector for Industrial Applications
Purchase the Wurth Elektronik dual row connector online today for your electronic projects and industrial automation needs. Designed with a 3.00mm pitch, it offers reliable connectivity with a current rating of 5A and supports high safety standards including RoHS compliance. Made from durable copper alloy with tin plating, it withstands temperatures from -40°C to 105°C. Perfect for PCB layouts requiring precise and secure electrical connections, this connector ensures performance, safety, and ease of installation for engineers and technicians alike.
Get Wurth Elektronik 66201021022 today—built for precision, durability, and high-density PCB connection solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 66201021022?
You can click on the BUY or RFQ button to purchase 66201021022 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 66201021022?
You can download the 66201021022 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 66201021022?
WURTH ELEKTRONIK
