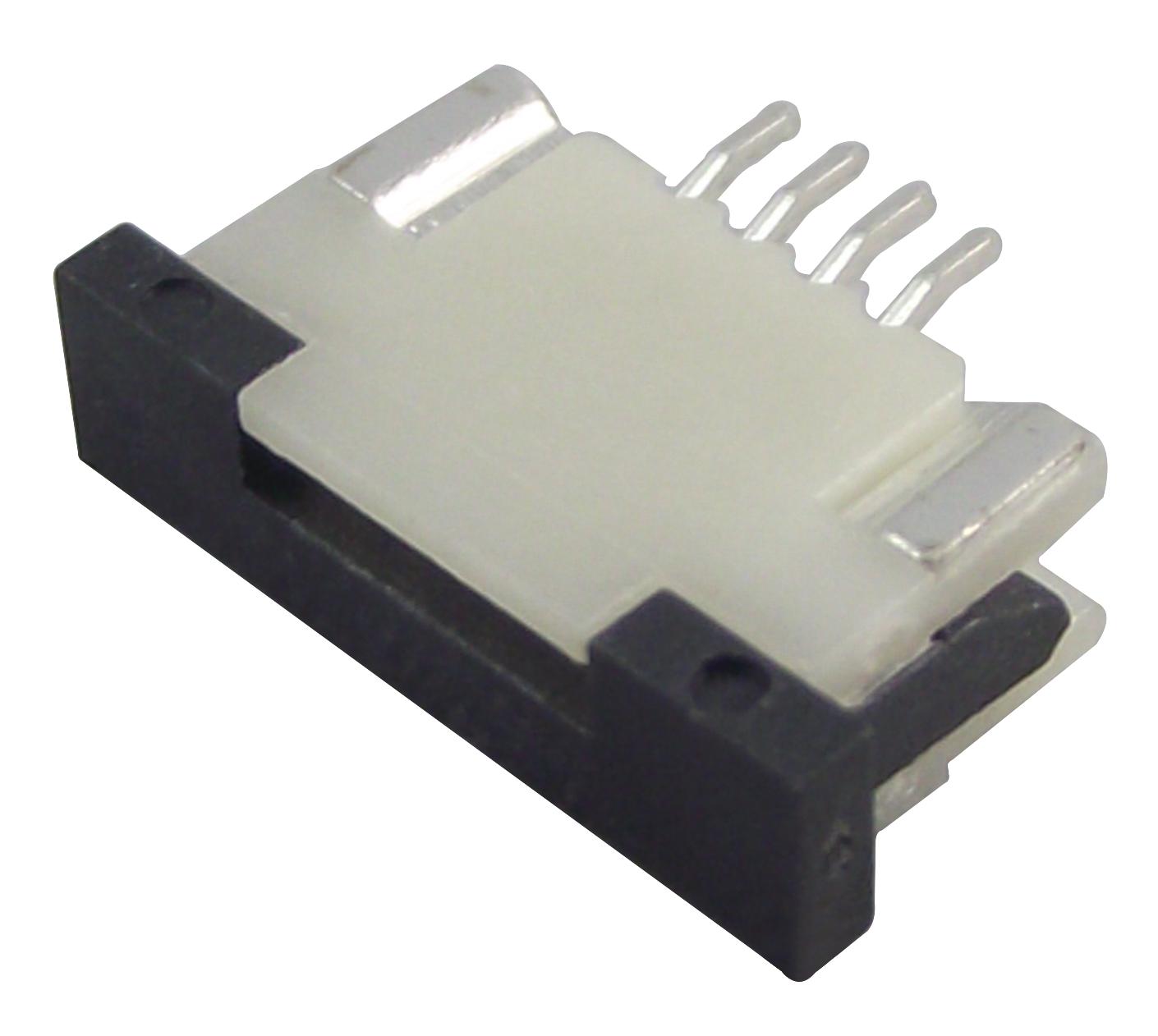

WURTH ELEKTRONIK 68610414422 FPC Connector
The Würth Elektronik 68610414422 is a flexible printed circuit (FPC) connector designed for secure and reliable connections in a variety of electronic applications. It is RoHS compliant and features a PPS insulator material with UL94 V-0 flammability rating. This connector is suitable for use in general electronic equipment and is not intended for critical safety applications without additional evaluation. It offers a compact design and is available in tape and reel packaging for automated assembly processes.
WURTH ELEKTRONIK 68610414422 FPC Connector Specifications:
- Dimensions: 1 ±0.05 mm
- Recommended Land Pattern: 3.5 mm
- Pitch: 1 mm
- Durability: 25 Mating cycles
- Insulator Material: PPS
- Insulator Flammability Rating: UL94 V-0
- Actuator Material: PPS
- Actuator Flammability Rating: UL94 V-0
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- Operating Temperature: -25 up to +85 °C
- Rated Current: 1 A
- Working Voltage: 25 V (AC)
- Withstanding Voltage: 500 V (AC)
- Contact Resistance: 20 mΩ (max.)
- Insulation Resistance: 100 MΩ (min.)
- UL Approval: E323964
- Packaging: Tape and Reel
- Packaging Unit: 1500
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Pin to Pin (Middle): 3 mm
- Length (L): 11 mm
- Length (L1): 9 mm
- Length (L2): 5.1 mm
