WURTH ELEKTRONIK 686116188822 FPC Connector
The WR-FPC SMT Vertical Type A is a high-quality flexible printed circuit (FPC) connector designed for surface-mount technology, featuring a 1.0mm pitch and a compact, vertical profile. Crafted with UL94 V-0 rated insulator material and phosphor bronze contacts plated with 2.032μm tin over nickel, it offers reliable electrical performance. Suitable for electronic applications requiring durability and precision, its manufacturing quality ensures consistent mating cycles of 20. Handling and installation should follow specified soldering and cleaning guidelines to maintain performance.
WURTH ELEKTRONIK 686116188822 FPC Connector Specifications:
- Pitch: 1 mm
- Material: UL94 V-0 rated insulator
- Contact Material: Phosphor Bronze
- Contact Plating: 2.032μm Tin over Nickel
- Operating Temperature: -25°C to +85°C
- Mating Cycles: 20
- Package Type: Tape and Reel, Reel in Carton
- Reel Dimensions: 47 mm diameter, 100 mm length, 950 units per package
- Packaging Specification: Tape and Reel, Carton packaging available
- Soldering Profile: Preheat 150°C-200°C, max ramp-up rate 3°C/sec, peak 260°C

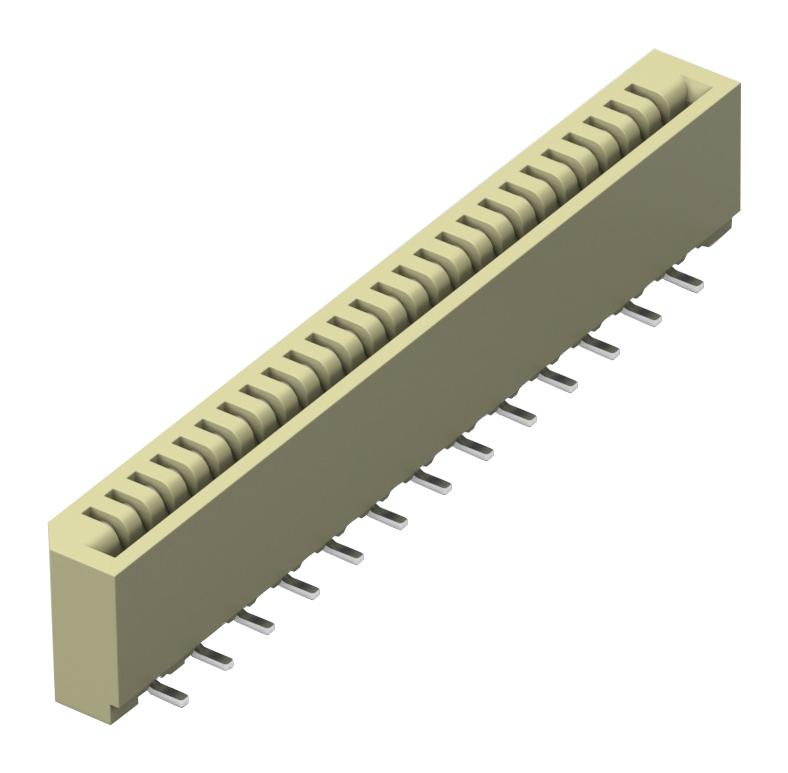

Buy the Buy Würth Elektronik WR-FPC SMT Vertical Connector Part Number 686116188822 Online
Enhance your electronic assembly with the Würth Elektronik WR-FPC SMT Vertical Connector. Designed for precise surface-mount applications, it features a 1.0mm pitch, UL94 V-0 insulator, and durable phosphor bronze contacts. Built to endure 20 mating cycles, this connector guarantees stability and reliable electrical performance in your devices. Packaged conveniently in tape and reel formats, it ensures efficient handling and assembly. Trust Würth Elektronik for quality components that meet industry standards and improve your product reliability.
Order your Würth Elektronik WR-FPC SMT Vertical Type A connector today and ensure your electronic projects have reliable, high-performance connections.
