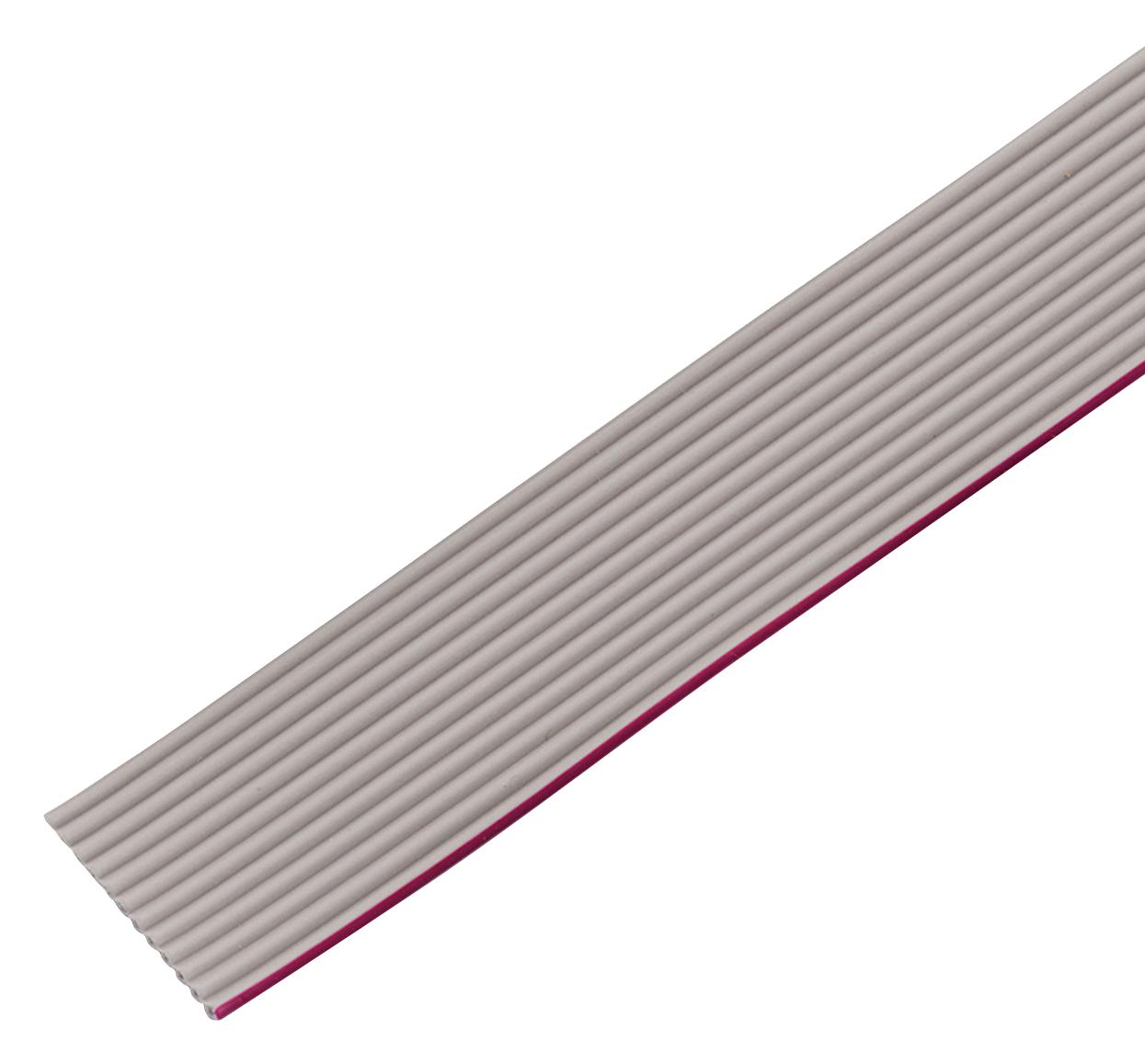

WURTH ELEKTRONIK 63912615521CAB Ribbon Flat Cable
The Würth Elektronik 63912615521CAB is a 26-way ribbon flat cable designed for flexible circuit connections in general electronic equipment. It features a 1.27mm pitch, PVC insulation, and is RoHS compliant. This cable is suitable for applications requiring reliable signal transmission and is not intended for use in safety-critical or high-reliability applications without prior written approval from Würth Elektronik. Proper storage and handling are recommended to prevent damage or contamination.
WURTH ELEKTRONIK 63912615521CAB Ribbon Flat Cable Specifications:
- Pins: 26
- Pin to Pin (Middle): 31.75 mm
- Length: 33.02 mm
- Pitch: 1.27 mm
- Material Properties: PVC
- Conductor Material: Copper
- Conductor Plating: Tin
- Operating Temperature: -25 up to +105 °C
- Rated Current: 1 A
- Rated Voltage: 300 V (RMS)
- Withstanding Voltage: 2000 V (AC)
- Insulation Resistance: 10 MΩ
- Signal Delay: 4.65 ns
- Conductor Resistance: 23.7 Ω
- Unbalanced Capacity: 5.6 pF
- Unbalanced Impedance: 105 Ω
- Unbalanced Inductance: 1.45 µH
- Stranded Wire Section (AWG): 28 (AWG)
- Number on Strand: 7
- Number on Conductor: 0.013 mm
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- cULus Approval: E328849
- Packaging: Bag
- Packaging Unit: 1 piece = 1 Meter of cable
Buy the 63912615521CAB WURTH ELEKTRONIK Ribbon Flat Cable | myMectronic
Purchase the WURTH ELEKTRONIK 63912615521CAB Ribbon Flat Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 63912615521CAB?
You can click on the BUY or RFQ button to purchase 63912615521CAB from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 63912615521CAB?
You can download the 63912615521CAB datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 63912615521CAB?
WURTH ELEKTRONIK
