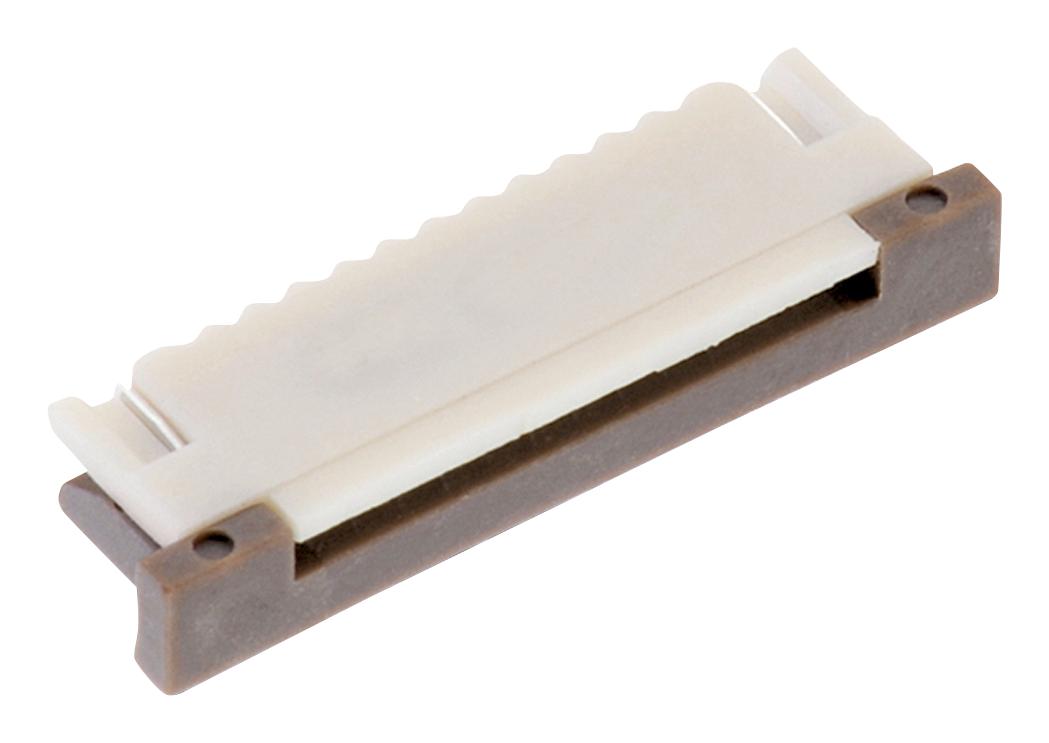

WURTH-ELEKTRONIK 68612414122 ZIF Socket
This precision ZIF socket from Wurth Elektronik features a 1.00 mm top contact pitch, compatible with flexible flat cables and suitable for PCB assembly. Designed for high reliability, it supports 25 mating cycles, making it ideal for testing and electronic modules requiring secure connections. Its insulation material is PPS with UL94 V-0 flammability rating, ensuring safety. The contact material is phosphor bronze with tin over nickel plating for excellent conductivity and corrosion resistance. Operating temperature ranges from -25°C to +85°C, with rated current of 1 A and working voltage of 125 VAC. Its compact dimensions mean it fits well into space-constrained electronic designs, providing durability and reliable electrical performance in various applications.
WURTH-ELEKTRONIK 68612414122 ZIF Socket Specifications:
- Pitch P: 1 mm
- Pins: 24
- Pin to Pin (Middle): 23 mm
- Length L: 31 mm
- Length Y: 29 mm
- Rated Current: 1 A
- Working Voltage: 125 VAC
- Withstanding Voltage: 500 V (AC, 1 min)
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 100 MO min.
- Operating Temperature Range: -25°C to +85°C
- Contact Material: Phosphor Bronze
- Contact Plating: Tin over Nickel
- Insulator Material: PPS
- Insulator Flammability Rating: UL94 V-0
- Durability: 25 mating cycles
- Packaging: Tape and Reel, 7500 units per reel
- Certification: UL Approval 323964, RoHS compliant, REACH conform
Buy the Buy Wurth Elektronik ZIF Socket Part Number 68612414122 Online
Experience the high-quality Wurth Elektronik ZIF socket, offering a 1.00 mm pitch, robust phosphor bronze contacts, UL94 V-0 insulation, and support for 25 mating cycles. Engineered for reliable performance in space-constrained electronics, it features high durability, excellent electrical conductivity, and certification for safety standards. Perfect for testing, module connections, and electronic assemblies requiring secure, high-reliability connections. Whether in production or repair, this socket ensures consistent, long-lasting performance, making it a valuable component for your electronic projects and manufacturing needs.
Get Wurth Elektronik 68612414122 today—built for high reliability and precise flexible flat cable connections.
Frequently Asked Questions
Where can I buy WURTH-ELEKTRONIK 68612414122?
You can click on the BUY or RFQ button to purchase 68612414122 from an authorized WURTH-ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 68612414122?
You can download the 68612414122 datasheet or visit the WURTH-ELEKTRONIK website for support.
Who is the manufacturer of 68612414122?
WURTH-ELEKTRONIK
