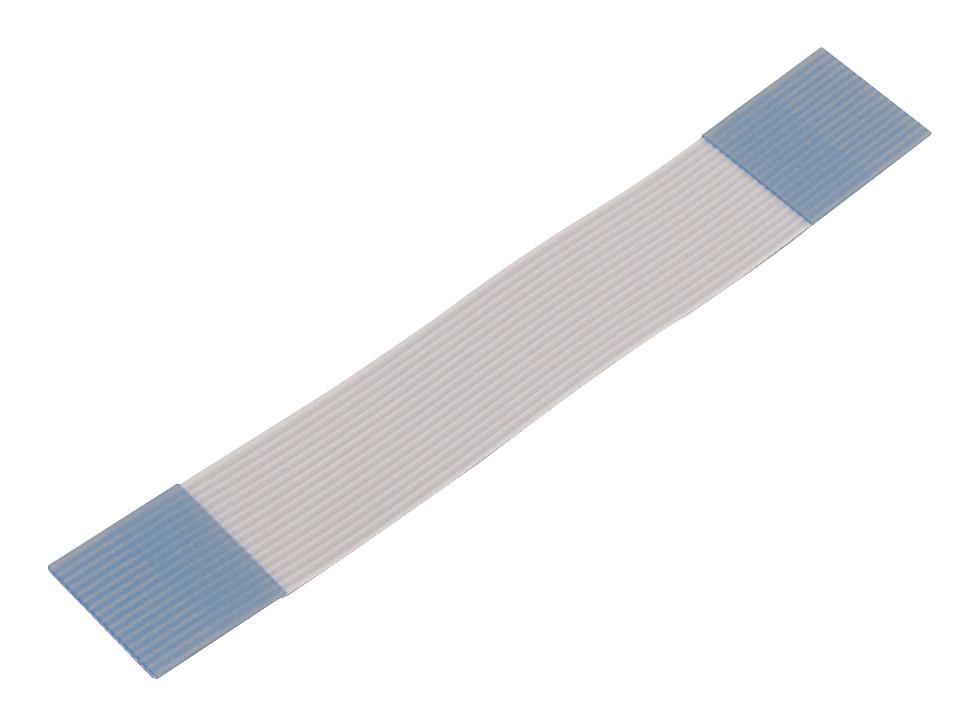

WURTH ELEKTRONIK 686609050001 Flat Flexible Cable
WURTH ELEKTRONIK flat flexible cable with a 1.00 mm pitch and 8 conductors offers high durability, flexible design, and proven electrical performance for electronic and communication equipment. Its PET insulator and copper contacts ensure reliability under various operating conditions, including temperatures up to +105°C. Certified for safety and quality, this cable is suitable for general electronic applications, featuring excellent moisture resistance, insulation resistance, and electrical properties. Ideal for connecting flexible circuits in industrial, consumer, and communication devices requiring dependable performance and compliance with international standards.
WURTH ELEKTRONIK 686609050001 Flat Flexible Cable Specifications:
- Pitch: 1 mm
- Total Length: 8 mm
- Width: 10 mm
- Margin: 1 mm
- Conductor Width: 0.7 mm
- Conductor Thickness: 0.085 mm
- Support Tape Length 1: 10 mm
- Support Tape Length 2: 10 mm
- Strip Length 1: 5 mm
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Material: PET (Insulator and Tape), Copper (Contacts)
- Contact Plating: Tin
- Operating Temperature: -30°C to +105°C
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V, 1000 MΩ min.
- Withstanding Voltage: 500 V for 1 min without breakdown
- Conductor Resistance: 1.09 Ω max.
- Contact Resistance: 20 mΩ max.
- Durability: 20 mating cycles
- Certifications: UL, RoHS, Reach
Buy the WURTH ELEKTRONIK 686609050001 – Reliable Flat Flexible Cable for Industrial Applications
Purchase the WURTH ELEKTRONIK flat flexible cable with a 1.00 mm pitch and 8 conductors online today. Designed for industrial, communication, and electronic applications, it offers excellent flexibility, durability, and safety features including UL certification, RoHS compliance, and high-temperature resistance. Its PET insulator and copper contacts ensure long-term reliability under demanding conditions. Perfect for connecting flexible circuits, this cable guarantees consistent electrical performance while complying with international standards. Order now to enhance your electronic systems with trusted quality and quick delivery.
Buy WURTH ELEKTRONIK 686609050001 now and experience dependable performance in your electronic and industrial projects.
