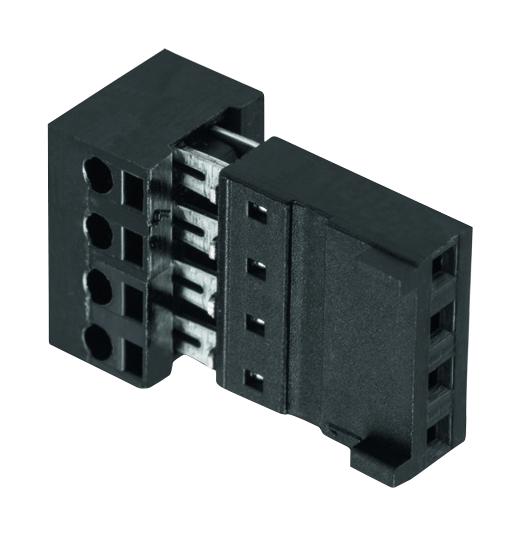

WURTH ELEKTRONIK 661008152022 Receptacle connector
This receptacle connector is designed for general electronics applications, accommodating AWG #28-26 wires with a 3A current rating and 50VAC working voltage. Made with PBT insulator and phosphor bronze metal, it features tin plating and a UL94V-0 flammability rating. Suitable for temperatures from -40°C to +125°C, it supports 25 mating cycles with a withstand voltage of 500 VAC/min. The connector’s compact size and RoHS compliance make it ideal for reliable connections in industrial, automotive, and consumer electronics. Packaged in tubes, it ensures durability and ease of installation.
WURTH ELEKTRONIK 661008152022 Receptacle connector Specifications:
- Insulator Material: PBT
- Metal Material: Phosphor bronze
- Plating: Tin
- Flammability Rating: UL94V0
- Color: Black
- Operating Temperature: -40°C to +125°C
- Current Rating: 3 A
- Working Voltage: 50 VAC
- Withstanding Voltage: 500 VAC/min
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ Max
- Wire Range: AWG 28-26
- Mating Cycles: 25
- Packaging: 2.54 mm tubes
- RoHS Compliant
Buy the Wurth Elektronik 661008152022 – Reliable Receptacle for Industrial Applications
Purchase the Wurth Elektronik receptacle connector online today and ensure secure, reliable connections for your electronic devices. Engineered for durability, it features a robust construction with PBT insulator and phosphor bronze contacts, rated at 3A and 50VAC. Its operating temperature range from -40°C to +125°C makes it suitable for diverse environments. The connector’s tin-plated contacts and RoHS compliance highlight its quality and safety standards. Convenient in tubes, it simplifies installation in industrial, automotive, and electronic projects, providing long-lasting performance and peace of mind.
Buy Wurth Elektronik 661008152022 now and experience unmatched reliability and performance for your electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 661008152022?
You can click on the BUY or RFQ button to purchase 661008152022 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 661008152022?
You can download the 661008152022 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 661008152022?
WURTH ELEKTRONIK
