WURTH ELEKTRONIK 686626100001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a high-quality, durable cable designed for flexible electronic connections in various electronic devices and equipment. Featuring a 1.00 mm pitch and insulation made from PET material, it supports operating temperatures from -30°C to +105°C with excellent moisture and heat resistance. Suitable for applications requiring reliable signal transmission, this cable offers rated current of 1 A and a working voltage of 60 V. Its flexible, lightweight design makes it ideal for compact electronic assemblies and advanced wiring solutions.
WURTH ELEKTRONIK 686626100001 Flat Flexible Cable Specifications:
- Pitch: 1 mm with +0.08 mm tolerance
- Total Pitch: 25 mm with 0.1 mm tolerance
- Length: 100 mm with 3 mm tolerance
- Width: 27 mm with 0.1 mm tolerance
- Margin: 1 mm with 0.12 mm tolerance
- Conductor Width: 0.7 mm with 0.08 mm tolerance
- Conductor Thickness: 0.035 mm with 0.0 mm tolerance
- Support Tape Length 1: 10 mm with 2 mm tolerance
- Support Tape Length 2: 10 mm with 2 mm tolerance
- Strip Length 1: 5 mm with +0.1 mm tolerance
- Strip Length 2: 5 mm with +0.1 mm tolerance
- Support Tape Thickness: 0.225 mm with 0.01 mm tolerance
- Insulation Thickness: 0.043 mm with 0.01 mm tolerance
- Operating Temperature: -30°C to +105°C
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (DC) 1000 MΩ minimum
- Withstanding Voltage: 500 V AC for 1 min, no breakdown
- Conductor Resistance: 1.09 Ω max
- Contact Resistance: 20 mΩ max
- Flammability: UL SUB.758 compatible
- Material: PET (Insulator, white; Tape, blue)
- Contact Material: Copper with tin plating
- Durability: 20 mating cycles
- Certifications: UL, Rots approval, REACH compliant
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours

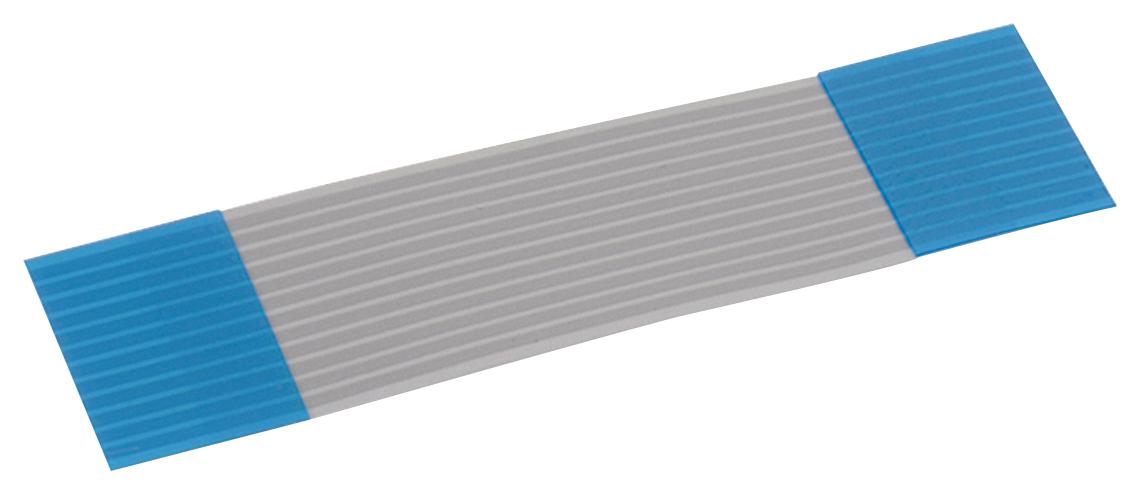

Buy the Buy Wurth Elektronik Flat Flexible Cable Part Number 686626100001 Online
Secure your electronic connections with the high-quality Flat Flexible Cable from Wurth Elektronik, offering excellent flexibility, temperature resistance from -30°C to +105°C, and reliable rated current of 1 A at 60 V. Its compact design with 1.00 mm pitch fits in tight spaces while maintaining high durability through multiple mating cycles. Perfect for advanced electronic assemblies, this cable supports moisture and heat resistance, UL and REACH compliance, making it an ideal choice for professional electronic applications requiring dependable, safe, and flexible wiring solutions.
Buy Wurth Elektronik 686626100001 flexible flat cable now and ensure reliable, high-performance electronic connections in your devices.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686626100001?
You can click on the BUY or RFQ button to purchase 686626100001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686626100001?
You can download the 686626100001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686626100001?
WURTH ELEKTRONIK
