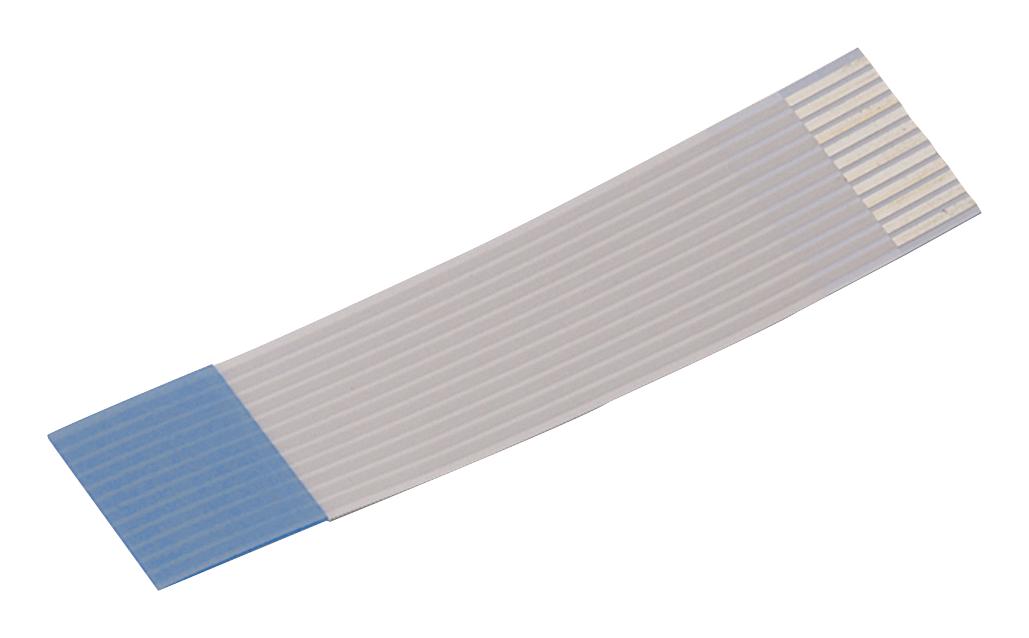

WURTH ELEKTRONIK 686715100001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a type 2, 1.00 mm pitch cable featuring durable PET insulation and copper conductors with tin plating. Designed for flexible electronic connections, it offers reliable electrical performance with a working voltage of 60 V, rated current of 1 A, and high mechanical durability including 20 mating cycles. Its flexible design enables easy routing in tight spaces, making it ideal for electronic devices, consumer electronics, and industrial equipment needing reliable, lightweight, and adaptable interconnect solutions. Suitable for applications requiring high-temperature resistance up to +105°C and excellent moisture resistance, ensuring long-term performance.
WURTH ELEKTRONIK 686715100001 Flat Flexible Cable Specifications:
- Pitch: 1.00 mm
- Conductor Material: Copper
- Conductor Plating: Tin
- Insulation Material: PET (White)
- Operating Temperature: -30°C to +105°C
- Working Voltage: 60 V
- Rated Current: 1 A
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 1000 MΩ min. at 500 V
- Durability: 20 mating cycles
- Flammability Rating: UL SUB.758
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
- Mechanical Tests: Elongation 60%, Tensile strength 35 N/mm², Flexing 180° 20 times, Abrasion 10,000 cycles
Buy the Wurth Elektronik Series Flat Flexible Cable: 686715100001
Purchase the Wurth Elektronik WR-FFC Flat Flexible Cable online today for reliable, high-performance interconnect solutions. Its flexible design and robust construction make it ideal for compact electronic devices, industrial systems, and consumer electronics. With a 1.00 mm pitch, copper conductors, and PET insulation, this cable supports rated currents up to 1 A and voltages of 60 V. It withstands high temperatures up to +105°C and resists moisture and mechanical wear, ensuring consistent long-term performance in demanding environments.
Get Wurth Elektronik WR-FFC Flat Flexible Cable today—built for flexible electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686715100001?
You can click on the BUY or RFQ button to purchase 686715100001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686715100001?
You can download the 686715100001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686715100001?
WURTH ELEKTRONIK
