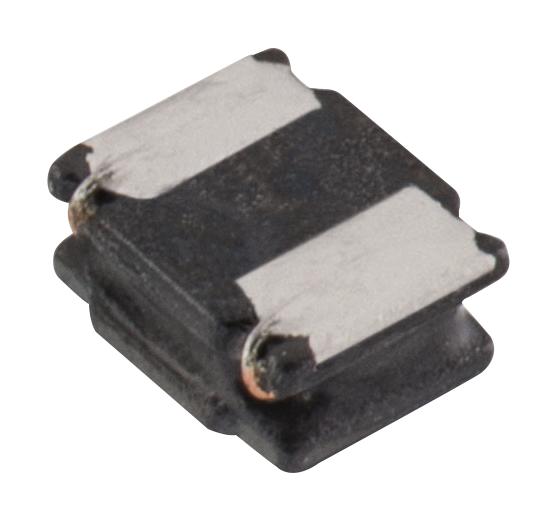

WURTH ELEKTRONIK 74404020022 power inductor
The WURTH ELEKTRONIK WE-LOS SMD Power Inductor is designed for high-frequency applications, featuring a compact surface-mount package with a typical inductance of around 2.5 µH at a rated current of 0.96 A. It offers excellent performance in filtering and energy storage, with a maximum saturation current of 14 A and a DC resistance of approximately 220 mΩ at 20°C. Operating in temperatures from -40°C to +125°C, it is ideal for space-constrained and high-power electronic designs, ensuring reliable inductance and minimal energy loss.
WURTH ELEKTRONIK 74404020022 power inductor Specifications:
- Inductance: 2.5 µH at 40 KHz
- Rated Current: 0.96 A
- Saturation Current: 14 A typ.
- DC Resistance: 220 mΩ at 20°C
- Self Resonant Frequency: 107 MHz
- Operating Temperature: -40°C to +125°C
- Storage Temperature: 20°C to +60°C, 75% RH max.
- Package: Surface-mount type, optimized for high-frequency applications
- Maximum Temperature of Operation: +125°C
- Preheat Temperature Range: 150°C to 200°C
- Reflow Soldering Profile: Follow IPC/JEDEC J-STD-020E standards
Buy the WURTH ELEKTRONIK Series WE-LOS SMD Power Inductor: 74404020022
Purchase the WURTH ELEKTRONIK Series WE-LOS power inductor 74404020022 online now to achieve high-frequency stability and efficiency in your designs. This compact surface-mount inductor offers a nominal inductance of 2.5 µH, rated current of 0.96 A, and a saturation current of 14 A, making it suitable for demanding electronic applications. Its low DC resistance of 220 mΩ ensures minimal energy loss, and the operating temperature range of -40°C to +125°C guarantees reliable performance across various environments. Ideal for filtering, energy storage, and high-frequency circuits, order now for fast delivery and quality assurance.
Order your WURTH ELEKTRONIK Series WE-LOS Power Inductor 74404020022 today and ensure reliable high-frequency performance in your electronics projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74404020022?
You can click on the BUY or RFQ button to purchase 74404020022 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74404020022?
You can download the 74404020022 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74404020022?
WURTH ELEKTRONIK
