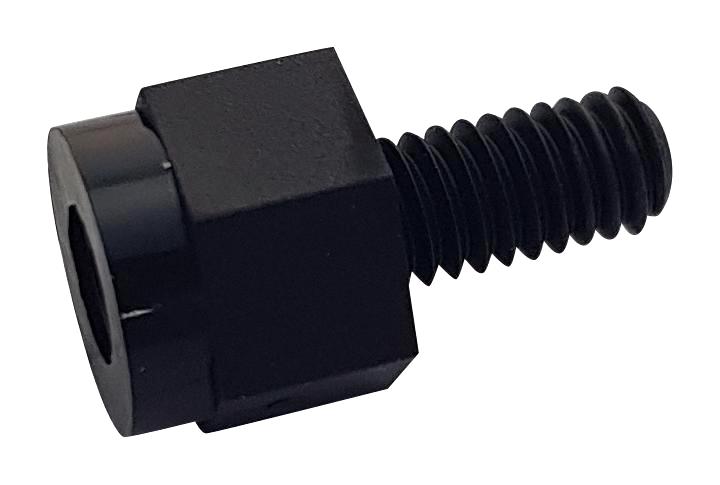

WURTH ELEKTRONIK 971100155 Plastic Spacer Stud
The Würth Elektronik WA-SPAIE 971100155 is a plastic spacer stud designed for use in general electronic equipment. Constructed from polyamide, this spacer offers a lightweight and durable solution for maintaining spacing between components. It features both internal and external metric threads (M2.5) and is RoHS compliant, ensuring environmental responsibility. This component is suitable for a wide range of applications where secure and reliable spacing is required, contributing to the overall stability and functionality of electronic assemblies. Customers intending to use these components in safety-critical or high-reliability applications must perform their own pre-evaluation.
WURTH ELEKTRONIK 971100155 Plastic Spacer Stud Specifications:
- Dimensions_A_mm: N/A
- SW: 5
- Lu0_1_mm: N/A
- Tlo_mm: 8
- Ti_mm: M2.5
- To_mm: M2.5
- Tli_mm: 8
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -30 up to +110 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L_mm: 10
- General_Tolerance: DIN ISO 2768-1m
- Description: WA-SPAIE Plastic Spacer Stud
- Size_Type: with Metric Thread, internal/external
