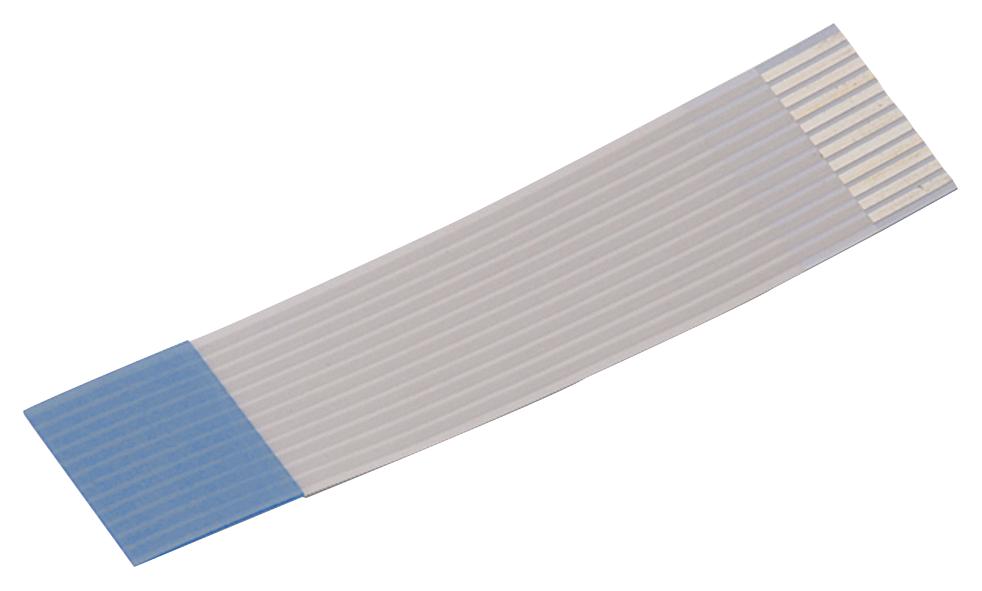

WURTH ELEKTRONIK 686722100001 Flat Flexible Cable
Würth Elektronik flat flexible cable type 2, measuring 1.00 mm in width with a total length of 21 mm, is designed for flexible electronic connections in various electronic devices. This durable, UL-rated PET insulator cable features high flexibility, abrasion resistance, and a working voltage of 60 V, making it suitable for compact and space-efficient applications. It supports a rated current of 1A with reliable insulation resistance and withstands typical mechanical stresses, ensuring long-lasting performance in electronic equipment requiring reliable flex circuits.
WURTH ELEKTRONIK 686722100001 Flat Flexible Cable Specifications:
- Width: 1.00 mm
- Length: 21 mm
- Material: PET (White insulator, Blue tape)
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ | min at 500 V (DC)
- Withstanding Voltage: 500 V AC for 1 min (no breakdown)
- Conductor Resistance: 1.09 Ω max
- Contact Resistance: 20 mΩ max
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Heat Resistance: 110°C × 96 hours
- Moisture Resistance: 40°C, 95% RH × 96 hours
- Durability: 20 mating cycles
- Certification: UL, CSA, Reach, RoHS
- Soldering: Profile must follow specified conditions
- Storage: Use within 12 months of shipment
Buy the Wurth Elektronik Series Flat Flexible Cable: 686722100001
Order Würth Elektronik flat flexible cable 686722100001 online today to ensure reliable electrical connections in compact electronic assemblies. Designed with durable PET insulator, high flexibility, and excellent mechanical and electrical properties, this 1.00 mm wide cable supports up to 1A current and 60V working voltage. It offers advanced insulation, high moisture and heat resistance, plus UL and CSA approval for safe and dependable use. Perfect for space-saving electronic applications requiring flexible, durable wiring with superior performance and long-lasting reliability.
Get Würth Elektronik flat flexible cable 686722100001 today—built for precise electronic connections and long-term durability.
