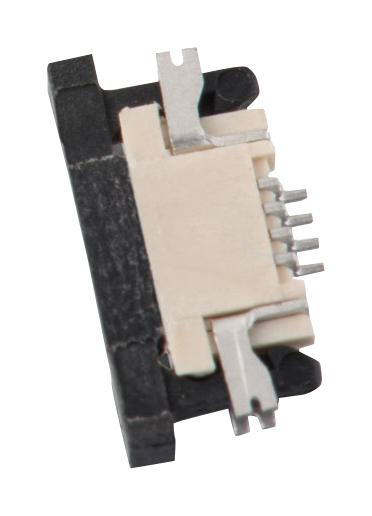

WURTH ELEKTRONIK 687124183722 Flexible Circuit Connector
The product is a low-profile FPC ZIF connector ideal for flexible circuit applications in electronics. Made with halogen-free materials and rated UL94V-0 for flammability, it supports up to 20 mating cycles. Designed for surface-mount technology with a pitch of 0.5 mm, it features stamped phosphor bronze contacts with tin over nickel plating for reliable electrical connections. Suitable for operating temperatures from -25°C to +85°C, and compliant with RoHS standards, it ensures high durability and safety in electronic assemblies. The connector's compact design and robust construction make it perfect for space-constrained devices requiring dependable interconnections.
WURTH ELEKTRONIK 687124183722 Flexible Circuit Connector Specifications:
- Pitch: 0.5 mm
- Pin to Pin (Middle): 11.5 mm
- Material: Phosphor Bronze
- Contact Plating: Tin over 30 µ
- Nickel
- Number of Pins: 24
- Operating Temperature: -25°C to +85°C
- Durability: 20 mating cycles
- Flammability Rating: UL94V-0
- Insulation Material: uCP
- Material: Brass with UL94V-0 rating
- Packaged in Tape and Reel for automated placement
- RoHS compliant and halogen-free
- Certified: UL approval, RoHS approval, IEC 61249-2-21 halogen free
- Solder Tabs: Brass
- Contact Resistance: Max 30 mΩ
- Insulation Resistance: Min 100 MΩ
- Withstanding Voltage: 250 V
- Rated Current: 0.4 A
Buy the Wirth Elektronik 687124183722 – Reliable Flexible Circuit Connectors for Industrial Applications
Order the Wirth Elektronik flexible circuit connector today and enjoy fast delivery, reliable electrical connections, and compliance with safety standards. Designed for space-efficient applications, it features 24 pins with a 0.5 mm pitch, UL94V-0 flammability rating, and RoHS compliance. Perfect for high-reliability electronic devices requiring durable and precise connections, this connector supports up to 20 mating cycles. Enhance your assembly process with this robust and easy-to-install component, ensuring optimal performance in demanding environments. Buy online now and elevate your product quality.
Buy Wirth Elektronik 687124183722 now and experience unmatched reliability and performance in your electronic assembly projects.
