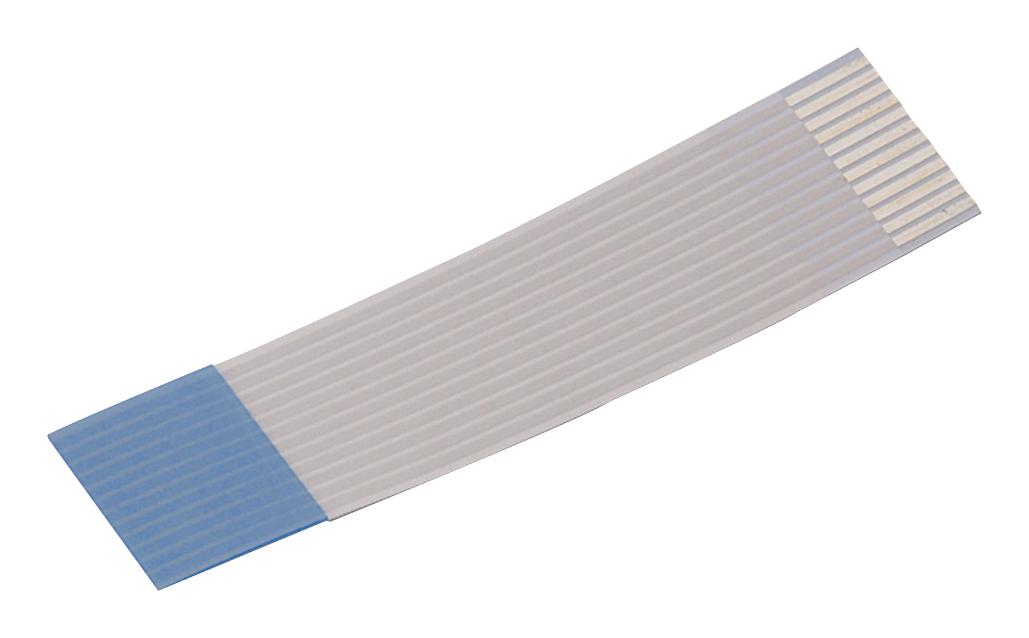

WURTH ELEKTRONIK 687708050002 Flat Flexible Cable
The 687708050002 is a 50mm 8-pin flat flexible cable designed for electronic equipment with high durability and reliable electrical performance. It features tin-plated copper contacts, a white PET insulator, and a durable PET support tape, supporting up to 20 mating cycles. Operating at a maximum current of 0.5A and working voltage of 60VAC, it ensures safety with an insulation resistance of 1000 megaohms and a withstand voltage of 500VAC. Perfect for industrial and electronic manufacturing applications requiring flexible, high-quality ribbon cables.
WURTH ELEKTRONIK 687708050002 Flat Flexible Cable Specifications:
- Length: 50 mm
- Number of pins: 8
- Contact Material: Tin-plated Copper
- Insulator Material: PET
- Operating Temperature: -30°C to +105°C
- Rated Current: 0.5A
- Working Volatge: 60VAC
- Insulation Resistance: 1000 MΩ
- Withstand Voltage: 500VAC
- Contact Resistance: 20 mΩ
- Durability: 20 mating cycles
- Support Tape Material: PET
- Support Tape Length: 8 mm
- Tape Thickness: 0.225 mm
- Flammability Rating: UL SUB.758
- Moisture Resistance: 96 hours at 40°C, 95% RH
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 687708050002 Online
Secure your electronic projects by ordering the WURTH ELEKTRONIK Flat Flexible Cable 687708050002 online today. This high-quality 8-pin ribbon cable offers excellent flexibility, durability, and electrical performance, supporting up to 20 mating cycles. With tin-plated copper contacts, PET insulator, and support tape, it is tailored for industrial, automation, and electronic manufacturing applications. Our seamless online purchasing process guarantees quick delivery and the best prices, helping you meet project deadlines efficiently and reliably.
Order your WURTH ELEKTRONIK Flat Flexible Cable 687708050002 today and ensure reliable flexible connections for your industrial and electronic projects.
