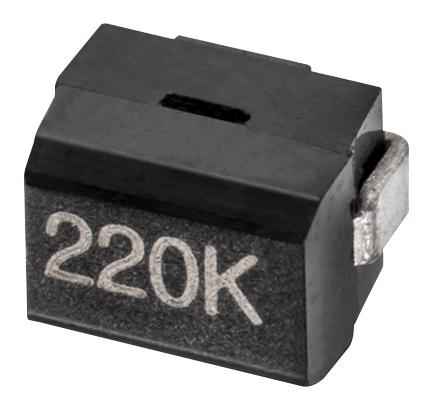

WURTH ELEKTRONIK 7447669168 RF Inductor
The WE-GFH High Frequency SMD Inductor is designed for high-frequency applications, delivering an inductance of 68 uH with a tolerance of +10%. It features a maximum DC resistance of 2.2 mΩ at 20°C and a self-resonant frequency around 12 MHz, making it suitable for RF circuits and electronic filtering. The inductor complies with RoHS and REACH standards, with robust soldering profiles, high reliability, and a compact size of 4.5 x 3.2 mm. It is ideal for use in electronic devices requiring stable high-frequency inductors with precise electrical characteristics.
WURTH ELEKTRONIK 7447669168 RF Inductor Specifications:
- Inductance: 68 uH +10%
- DC Resistance @20°C: 2.2 mΩ typ. / 2.25 mΩ max.
- Self resonant frequency: 12 MHz typ.
- Rated current: 350 mA
- Operating temperature: -40°C to +125°C
- Storage temperature: -20°C to +60°C
- Soldering profile: Preheat 150°C-200°C for 60-120 seconds, peak temperature 245°C, ramp-up 3°C/sec, ramp-down 6°C/sec
- Dimensions: approx. 4.5 mm x 3.2 mm
- Material: High frequency ferrite core with SMD package
- Standards: RoHS & REACH compliant
- Max. temperature during operation: 125°C
Buy the WURTH Elektronik 7447669168 – Reliable RF Inductor for Industrial Applications
Purchase the WURTH Elektronik RF Inductor 7447669168 online today to benefit from high-quality RF circuit components that deliver stable inductance, low DC resistance, and high self-resonant frequency. Designed for demanding electronic applications, this inductor provides excellent performance in RF filters, oscillators, and high-frequency circuits. It features RoHS compliance, robust soldering profiles, and reliable operation across a broad temperature range. Upgrade your electronic designs with this compact, precision high-frequency SMD inductor for exceptional circuit stability and efficiency.
Order your WURTH Elektronik Series7447669168 high frequency SMD inductor today and ensure your RF circuits perform reliably with precise inductance and low resistance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447669168?
You can click on the BUY or RFQ button to purchase 7447669168 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447669168?
You can download the 7447669168 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447669168?
WURTH ELEKTRONIK
