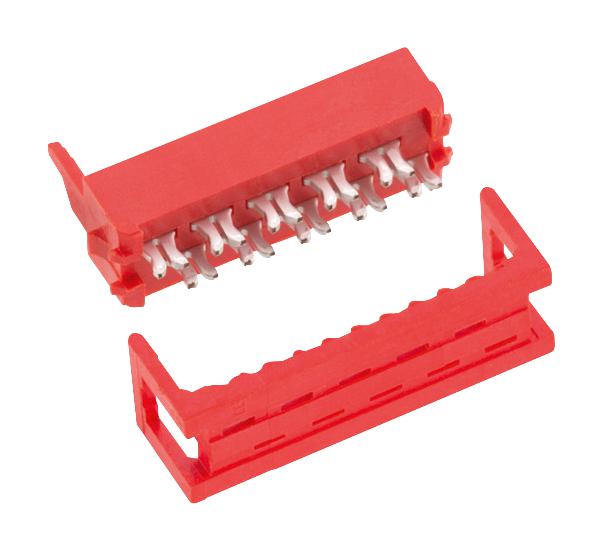

WURTH ELEKTRONIK 690157002472 Male IDC Connector
The WR-MM Male IDC Connector by Wurth Elektronik is a rugged, high-quality electrical component designed for general electronic applications. Made with phosphor bronze contacts with matte tin over nickel plating, it supports up to 1 A rated current per pin and a working voltage of 250 V AC. The connector features a PBT insulator rated UL94V-0 in red, with a pitch of 2.54 mm per row, and durability for 25 mating cycles. Operating temperature ranges from -40°C to +105°C, making it suitable for various environments.
WURTH ELEKTRONIK 690157002472 Male IDC Connector Specifications:
- Pins: 24
- Pin to Pin (Middle): 29.21 mm
- Length L: 33.91 mm
- Pitch P: 2.54 mm per row
- Material: PBT insulator, phosphor bronze contacts
- Contact Plating: Matte Tin over Nickel
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A per pin
- Working Voltage: 250 V AC
- Durability: 25 mating cycles
- Insulation Resistance: 1000 MΩ min.
- Contact Resistance: 10 mΩ max.
- Insulation Material: PBT, Flammability: UL94V-0
- Gender: Male IDC
- Cable Compatibility: AWG 28, Ribbon Cable 1.27 mm pitch
- Certification: RoHS, cULus
- Packaging: Bulk, specific to purchase quantity
Buy the Buy Wurth Elektronik WR-MM Male IDC Connector Part Number 690157002472 Online
Purchase the Wurth Elektronik WR-MM Male IDC Connector online today to ensure robust and reliable electrical connections for your electronic projects. With a pitch of 2.54 mm, rated for 1 A current per pin, and operating within -40°C to +105°C, this connector supports critical industrial and general electronic applications. Its high durability of 25 mating cycles, RoHS compliance, and cULus approval confirm quality and safety. Order now for fast delivery and efficient assembly in your manufacturing or repair operations, ensuring long-term performance and connectivity integrity.
Get Wurth Elektronik WR-MM Male IDC Connector today—built for reliable connection and long-lasting durability in industrial electronics.
