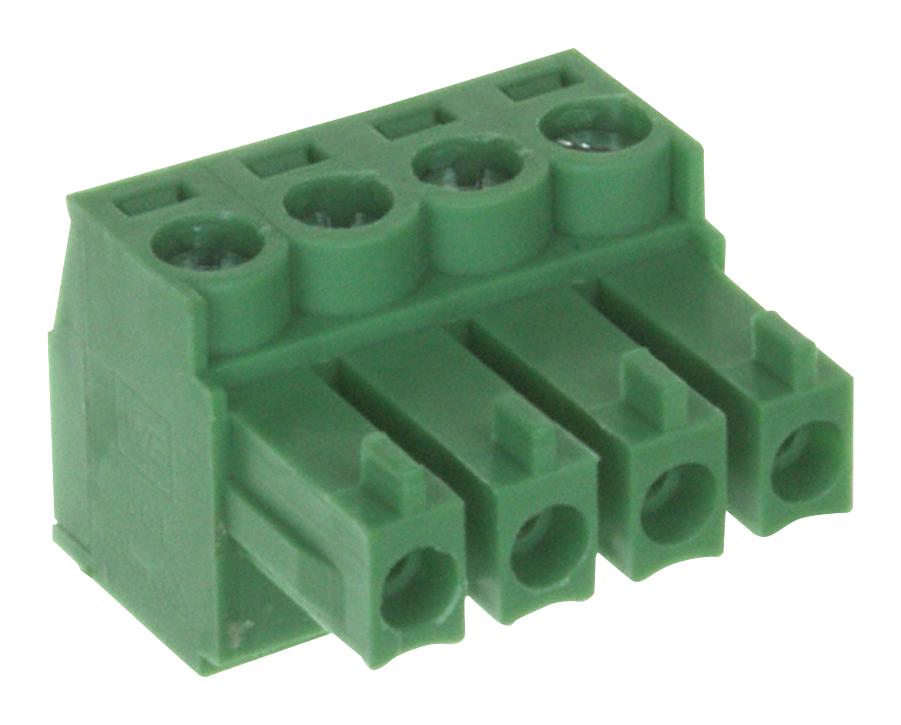

WURTH ELEKTRONIK 691361100004 Vertical Terminal Block
The 691361100004 is a 4-way green vertical entry pluggable terminal block featuring M2 screw connections and designed for wire sizes up to 16 AWG. It has a 3.5 mm pitch and is part of the WR-TBL 3611 series, with a brass housing, tin-plated phosphor bronze wire guard, zinc-plated steel slot-type terminal screw, and PA66 insulating material. Compatible wire strip length is 6 to 7 mm. The terminal block requires a torque of 0.2 Nm (3 lb-in) for installation. It complies with the UL94V-0 flammability rating and is suitable for industrial applications.
WURTH ELEKTRONIK 691361100004 Vertical Terminal Block Specifications:
- Pitch: 3.5 mm
- Number of Pins: 4
- Pin to Pin (Middle): 10.5 mm
- Wire Range (AWG): 26 to 16
- Wire Range (Metric): 0.129 to 1.31 mm
- Material: Brass cage, PA66 insulator, zinc-plated steel screws
- Contact Material: Phosphor Bronze with Tin Plating
- Temperature Rating: -40°C to +105°C
- Rated Current: 10.5 A
- Working Voltage: 300 VAC
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ max
- Wire Strip Length: 6 to 7 mm
- Flammability Rating: UL94V-0
- Certification: UL, VDE, cULus
- Soldering & mounting: Suitable for PCB mounting with 0.2 Nm torque
- RoHS Compliance: Yes
Buy the Buy WURTH ELEKTRONIK WR-TBL Series 3611 - 3.50 mm Part Number 691361100004 Online
Discover the high-quality WURTH ELEKTRONIK vertical terminal block, part number 691361100004. Designed for industrial electronics, it features a 3.5 mm pitch, 4 poles, and a brass housing for durability. Suitable for wire sizes up to 16 AWG, it ensures secure connections with zinc-plated steel screws. The flammability rating UL94V-0 guarantees safety compliance. Easy to install, it operates within -40°C to +105°C and supports up to 10.5 A at 300 VAC. Purchase this reliable, RoHS-compliant connector online today for your critical electronic projects.
Get WURTH ELEKTRONIK WR-TBL Series 691361100004 today—robust 4-way terminal block, ideal for industrial applications, with reliable screw connections and UL certification.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 691361100004?
You can click on the BUY or RFQ button to purchase 691361100004 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 691361100004?
You can download the 691361100004 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 691361100004?
WURTH ELEKTRONIK
