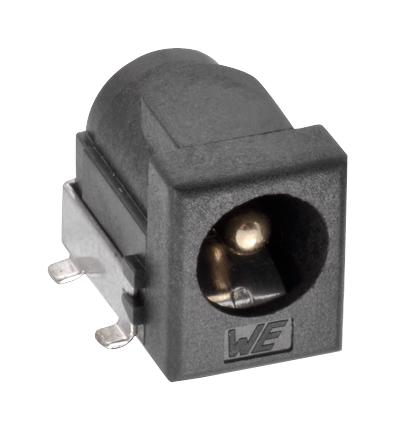

WURTH ELEKTRONIK 694106106102 DC Power Jack Right Angle
The Wurth Elektronik 694106106102 is a right-angled SMT DC power jack designed for secure and efficient power connections in electronic devices. Constructed with a PA 9T insulator and copper alloy contacts, it offers robust performance and durability. The gold plating on the center pin ensures low contact resistance and excellent signal transmission. This jack is RoHS compliant, meeting environmental standards, and is suitable for various applications including power supplies, charging circuits, and other electronic equipment. Its compact design and ease of integration make it a versatile choice for modern electronic designs. Always perform a reliability evaluation for safety-critical applications.
WURTH ELEKTRONIK 694106106102 DC Power Jack Right Angle Specifications:
- Material: Insulator: PA 9T, Contact: Copper Alloy
- Flammability Rating: UL94-V0 A
- Color: Black
- Contact Type: Stamped
- Plating Center Pin: Gold
- Plating Center Pin Terminal: Tin
- Plating Shunt Terminal: Tin
- Plating Tip Spring: Tin
- Quality Class: 5000 Mating Cycles
- Operating Temperature: -40°C to +85°C
- Compliance: RoHS Compliant
- Current Rating: 5A
- Working Voltage: 24 V DC
- Insulation Resistance: >100 MΩ
- Dielectric Withstanding Voltage: 500 VAC/MIN B
- Contact Resistance: 50 mΩ max
- Certification: c us E323964
- Soldering: JEDEC Lead Free Reflow Soldering
- Packaging: Tape & Reel
- Plug Inner Diameter: 2.05 +0.10- 0.00
- Plug Outer Diameter: 5.5±0.05
- Tolerance X: +/- 0.05
- Tolerance .X: +/- 0.30
- Tolerance .XX: +/- 0.20
