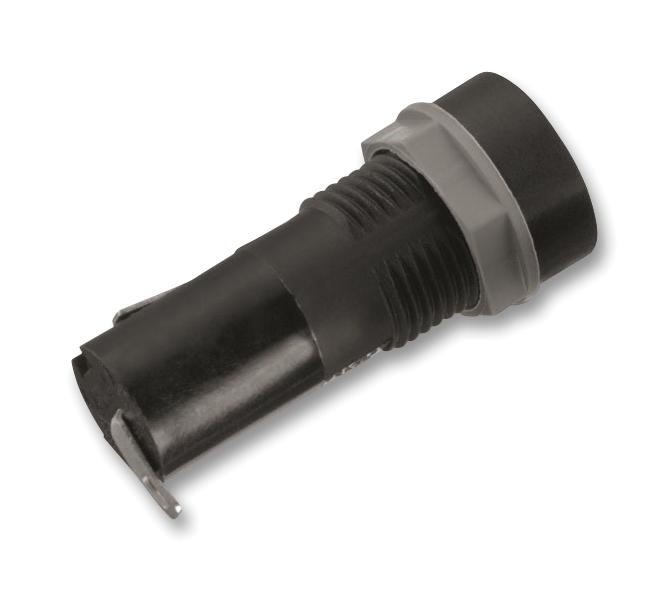

WURTH ELEKTRONIK 696212001002 Shocksafe Fuse Holder Panel
The Würth Elektronik 696212001002 is a robust shocksafe fuse holder designed for panel mounting applications. It utilizes a screw lock mechanism for secure attachment and incorporates features to prevent damage from mechanical impact. This component is suitable for a wide range of general electronics equipment, providing reliable fuse protection and meeting RoHS compliance standards. Care should be taken to avoid excessive force during operation to prevent contact dome deformation and ensure optimal performance. Always adhere to Würth Elektronik's technical soldering specifications to maintain warranty validity.
WURTH ELEKTRONIK 696212001002 Shocksafe Fuse Holder Panel Specifications:
- material_insulator: PA66
- flammability_rating: UL94V0
- color: Black
- contact_plating: Copper Alloy / Ni+Sn
- fuse_contact: Phosphor Bronze / Ni+Sn
- spring: Inox Steel
- operating_temperature: -30°C up to +120°C
- current_rating: 20 A
- working_voltage: 250 VAC
- withstanding_voltage: 1,5 KV / 3 KV
- protection_class: I o II B
- contact_resistance: 5/10 mΩ
- certified: E157417 CAT. N°: PTF/35, 133367
- type: PTF/35
- fuse_link: 5x20 mm
- protection_rate: IP40
- shocksafe_category: PC2
- rohs_compliant: Yes
- general_tolerance: ±0,1
- unit: MM
- scale: 1/2
