WURTH ELEKTRONIK 742792063 EMI Filter Bead
These specialized surface-mount ferrite chip beads can be directly mounted onto printed circuit boards. They provide excellent electromagnetic interference (EMI) suppression and feature low DC resistance. Even in the smallest size (0402), they can achieve maximal impedance at 1000 Ω when placed close to the interference source. Available in sizes including 0402, 0603, 0805, 1206, 1210, 1806, and 1952, they are equipped with reliable nickel-tin electrodes and are rated to handle currents up to 6A. Suitable for reflow soldering and operational within temperatures from -55°C to +125°C, these filters are ideal for data line filtering and decoupling in voltage distribution networks. Common applications include USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC converters, hard drives, fast bus signals, and power supplies. They are used in industrial, power management, consumer electronics, and portable device applications. Note: Due to high market demand, lead times may be extended, and delivery dates can fluctuate. These products are not eligible for discounts.
WURTH ELEKTRONIK 742792063 EMI Filter Bead Specifications:
- Size Options: 0402, 0603, 0805, 1206, 1210, 1806, 1952
- Impedance: Max 1000 Ω at 100 MHz
- Rated Current: Up to 6A
- Temperature Range: -55°C to +125°C
- Material: Nickel-tin electrodes
- Mounting: Surface-mount, suitable for reflow soldering
- Application: EMI filtering for USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC, hard drives
- Dimensions: Corresponds to size options (mm) as per standard 0402, 0603, etc.
- Electrical Properties: Low DC resistance, high impedance at 100 MHz, rated for high-frequency noise suppression
- Additional Info: High market demand may extend lead times; product not eligible for discounts

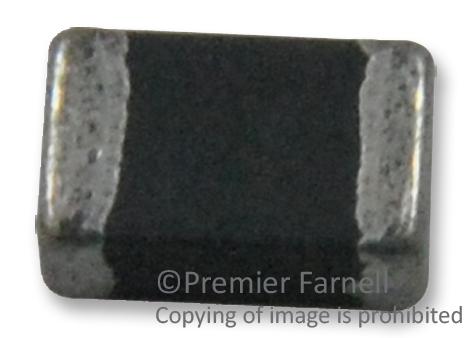

Buy the Buy WURTH ELEKTRONIK EMI Suppression Ferrite Part Number 742792063 Online
Purchase WURTH ELEKTRONIK EMI suppression ferrite bead 742792063 online now. This compact surface-mount filter offers excellent noise suppression, low resistance, and can handle up to 6A current. Available in multiple sizes, it is perfect for high-speed data line filtering, decoupling, and EMI reduction across various electronic devices. Suitable for reflow soldering and capable of operating from -55°C to +125°C, it’s ideal for industrial, consumer electronics, and power management applications. Limited stock—order today for fast delivery and ensure optimal circuit performance.
Get WURTH ELEKTRONIK ferrite bead 742792063 today—designed for high-frequency EMI filtering and reliable performance in electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 742792063?
You can click on the BUY or RFQ button to purchase 742792063 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 742792063?
You can download the 742792063 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 742792063?
WURTH ELEKTRONIK
