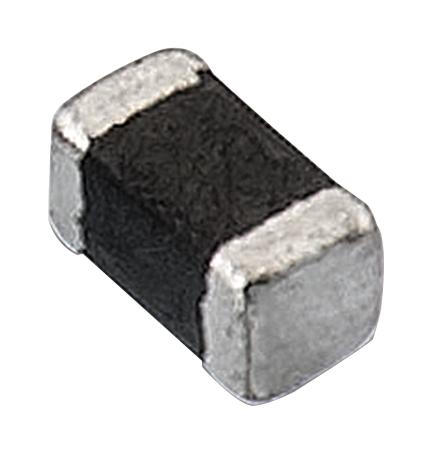

WURTH ELEKTRONIK 742792150 EMI Ferrite Bead
These special SMD chip bead ferrites are designed for direct installation on printed circuit boards. They provide excellent electromagnetic interference (EMI) suppression and feature low DC resistance. Even at the smallest size (0402), they can achieve maximum impedance at 1000 ohms when placed close to the interference source. Available in sizes including 0402, 0603, 0805, 1206, 1210, 1806, and 1825, these ferrites utilize reliable Ni-Sn electrodes and support high rated currents up to 6A. They are suitable for reflow soldering and operate within a temperature range of -55°C to +125°C. Commonly used as data line filters and for decoupling in voltage distribution, applications include USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC converters, hard drives, fast bus lines, and power supplies. They are ideal for industrial, power management, consumer electronics, and portable device applications.
WURTH ELEKTRONIK 742792150 EMI Ferrite Bead Specifications:
- Size: 0402, 0603, 0805, 1206, 1210, 1806, 1825
- Impedance @ 100 MHz: Maximum 1000 ohms
- DC Resistance: Low, supports high rated currents up to 6A
- Temperature Range: -55°C to +125°C
- Material: Ni-Sn electrodes for reliable contact
- Application: EMI suppression, data line filtering, decoupling, power supply filtering
- Supported soldering: Reflow-compatible
- Package: SMD chip bead ferrite
- Design: Direct PCB installation for electromagnetic interference reduction
- Operating Conditions: Suitable for industrial, power management, consumer electronics, portable devices
- Available sizes: 0402, 0603, 0805, 1206, 1210, 1806, 1825
Buy the Wurth Series EMI Suppression Ferrite: 742792150
Order the Wurth Series EMI Suppression Ferrite Bead 742792150 online today and enjoy superior electromagnetic interference suppression. Designed for direct installation on printed circuit boards, it offers high rated currents up to 6A, excellent low DC resistance, and support for reflow soldering. With a broad operating temperature range from -55°C to +125°C, it is ideal for data line filtering, power decoupling, and EMI reduction in industrial, consumer electronics, and power management applications. Ensure optimal performance and reliability by purchasing online now.
Buy Wurth EMI Suppression Ferrite 742792150 now and experience unmatched EMI reduction, high current support, and reliable reflow soldering compatibility.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 742792150?
You can click on the BUY or RFQ button to purchase 742792150 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 742792150?
You can download the 742792150 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 742792150?
WURTH ELEKTRONIK
