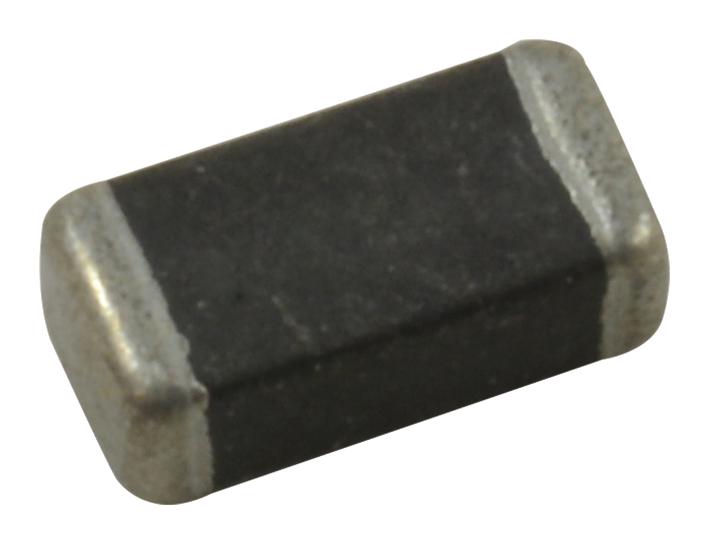

WURTH ELEKTRONIK 74279216 EMI Suppression Ferrite Bead
These specialized SMD chip bead ferrites are designed for direct placement on printed circuit boards. They provide excellent electromagnetic interference (EMI) suppression and feature low DC resistance. Even at the smallest size (0402), they can achieve maximum impedance at 1000 ohms when placed very close to the interference source. Available in sizes such as 0402, 0603, 0805, 1206, 1210, 1806, and 1919, they are equipped with reliable nickel-tin electrodes and support high rated currents up to 6A. Suitable for reflow soldering, they operate within a temperature range of -55°C to +125°C. These ferrites are used as data line filters and for decoupling in distribution voltage applications, including USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC converters, hard drives, and fast bus signals across industrial, power management, consumer electronics, and portable device applications.
WURTH ELEKTRONIK 74279216 EMI Suppression Ferrite Bead Specifications:
- Sizes available: 0402, 0603, 0805, 1206, 1210, 1806, 1919
- Maximum impedance at 1000 ohms at close proximity
- Material: Nickel-tin electrodes
- Rated current: Up to 6A
- Operating temperature: -55°C to +125°C
- Support reflow soldering
- Low DC resistance
- Used for EMI suppression, data line filtering, decoupling
- Suitable for USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC converters, hard drives
Buy the WURTH ELEKTRONIK 74279216 – Reliable EMI Suppression Ferrite for Industrial Applications
Order the WURTH ELEKTRONIK 74279216 directly online today and ensure your electronic circuits are protected against electromagnetic interference. These high-quality SMD ferrite beads offer excellent EMI suppression, support currents up to 6A, and are suitable for various applications such as data line filtering, decoupling, and noise suppression in industrial, consumer, and power management electronics. With support for reflow soldering and operation across -55°C to +125°C, they guarantee robust performance in demanding environments. Enhance your electronic design reliability—purchase now for fast delivery and excellent product support.
Buy WURTH ELEKTRONIK 74279216 now and experience unmatched reliability and high-current EMI filtering in your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74279216?
You can click on the BUY or RFQ button to purchase 74279216 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74279216?
You can download the 74279216 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74279216?
WURTH ELEKTRONIK
