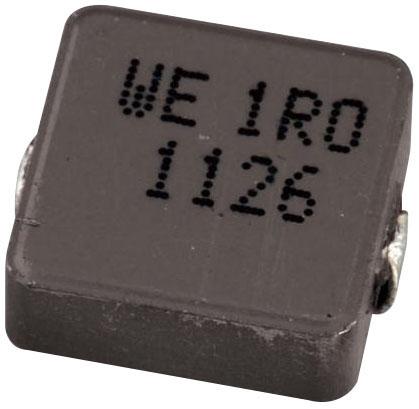

WURTH ELEKTRONIK 74437336010 SMD Power Inductor
The WE-LHMI SMD Power Inductor is a surface-mount device designed for efficient power management in a variety of electronic applications. It offers a 1.0 µH inductance with a tolerance of ±20%, a 7.3 A rated current, and a 11.2 A saturation current. The inductor's DC resistance is 13.0 mΩ (typical) and 14.0 mΩ (maximum), and it exhibits a self-resonant frequency of 60 MHz. Operating within a temperature range of -40°C to +125°C, this inductor is suitable for demanding environments. Würth Elektronik emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 74437336010 SMD Power Inductor Specifications:
- Inductance: 1.0 µH
- Inductance Tolerance: ±20%
- Rated Current: 7.3 A
- Saturation Current: 11.2 A
- DC Resistance @ 20°C: 14.0 mΩ (max)
- Self Resonant Frequency: 60 MHz
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -20°C to +40°C
Buy the 74437336010 WURTH ELEKTRONIK SMD Power Inductor | myMectronic
Purchase the WURTH ELEKTRONIK 74437336010 SMD Power Inductor securely and reliably through myMectronic.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74437336010?
You can click on the BUY or RFQ button to purchase 74437336010 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74437336010?
You can download the 74437336010 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74437336010?
WURTH ELEKTRONIK
