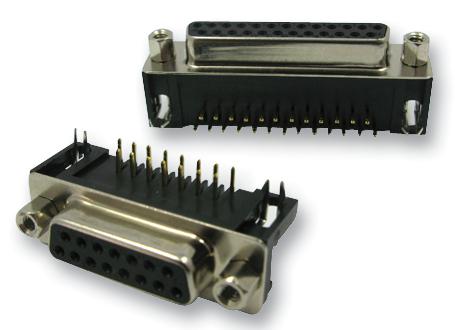

WURTH ELEKTRONIK 618025231321 D-Sub Connector
The PCB connector with Hex Screw is an angled female DSUB used for reliable electronic connections in various devices. Designed with durable materials like Copper Alloy contacts with gold plating, it offers a rated current of 3A and a working voltage of 125V. The insulator made of PBT has UL94 V-0 flammability rating, ensuring safety and durability. Its compact size with dimensions around 53.1 mm in length makes it suitable for industrial and electronic equipment requiring secure, high-quality connections. Certification includes UL and RoHS approval for safety and environmental compliance.
WURTH ELEKTRONIK 618025231321 D-Sub Connector Specifications:
- Material: PBT insulator, Copper Alloy contacts with gold plating, Steel shielding with nickel plating
- Rated Current: 3A
- Working Voltage: 125V (AC)
- Withstand Voltage: 1000V (AC) for 1 min
- Contact Resistance: Max. 30 mΩ
- Insulation Resistance: Min. 5000 MΩ
- Operating Temperature: -55°C to +105°C
- Flammability: UL94 V-0
- Durability: 50 mating cycles
- Dimensions: Length 53.1 mm, Width 11.64 mm, Height 20 mm
- Certification: UL Approval 323964, RoHS, JEDEC JS7098
Buy the Wurth Elektronik Series DSUB Connectors: 618025231321
Purchase the Wurth Elektronik DSUB 618025231321 angled female connector online today. Perfect for electronic and industrial equipment, this durable, UL and RoHS certified connector offers reliable performance with a rated current of 3A and operating voltage of 125V. Its high-quality construction with gold-plated contacts ensures excellent conductivity and longevity. Compact and easy to install, this connector is ideal for professional engineers and technicians seeking secure, high-performance connection solutions for demanding applications. Order now and enhance your device’s connectivity with confidence.
Buy Wurth Elektronik DSUB 618025231321 now and experience unmatched connector reliability and secure high-quality electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 618025231321?
You can click on the BUY or RFQ button to purchase 618025231321 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 618025231321?
You can download the 618025231321 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 618025231321?
WURTH ELEKTRONIK
